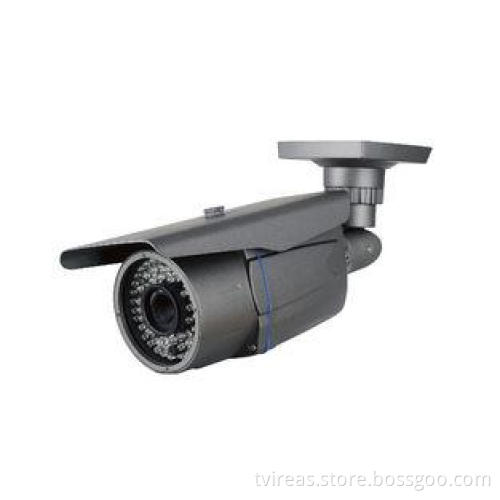

2.8-12mm Megapixel Lens Vandalproof IR Camera, 700tvl Super WDR CCTV IR Cameras, LS-VK50K-WDR
Key Features:
-
Color 1/3" SONY 700TVL,
-
Super WDR, 3D NR, Demist, SLR, Sense-up
-
Sony 672/673 + AVS 03 VANDAL PROOF IR Dome Camera
-
Built-in 72pcs IR leds
-
2.8-12mm Megapixels lens
|
Specifications |
|
Model Name
|
LS-VK50K-WDR
|
|
Image Device
|
1/3" Exview HAD CCD II (ICX673/672AKA)
|
|
DSP Device
|
AVS03
|
|
Resolution
|
700TVL
|
|
Picture Elements
|
PAL:976(H)×582(V) NTSC:976(H)×494(V)
|
|
IR Led & IR Range
|
72pcs ￠5 IR Led; 50M IR Distance
|
|
Min. Illumination
|
0.0003Lux (F2.0)/ 0 Lux IR On
|
|
Lens Furnished
|
Built-In 2.8-12mm manual Zoom Lens
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter
|
Auto(PAL:1/50~1/110,000, NTSC:1/60~1/100,000)
|
|
S/N Ratio
|
More than 48dB
|
|
Gamma
|
0.45
|
|
Exposure
|
WDR / HL I/ BLC / NORMAL
|
|
Shuter/ AGC
|
Auto/Manual
|
|
|
|
|
WB mode
|
ATW / MANUAL / PUSH
|
|
WDR range
|
120dB
|
|
Mirror
|
OFF/ HORI / VERT / ROTATE
|
|
Sense up
|
OFF / (×2 - ×1024)
|
|
MOTION DET
|
OFF/ON
|
|
Privacy Mask
|
OFF/ON (8Zone)
|
|
Day/Night
|
AUTO / DAY / NIGHT / SMART LED
|
|
3D-DNR
|
0-5 level
|
|
Language
|
English / Chinese
|
|
Sync. System
|
Internal
|
|
Waterproofing Criterion
|
IP 66
|
|
Video Output
|
1 Vp-p / 75 Ohms
|
|
Power Supply
|
DC12V±10%
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Dimension
|
295(W)x120(H)x103(D)mm
|
|
Weight
|
1700g
|
|
|
