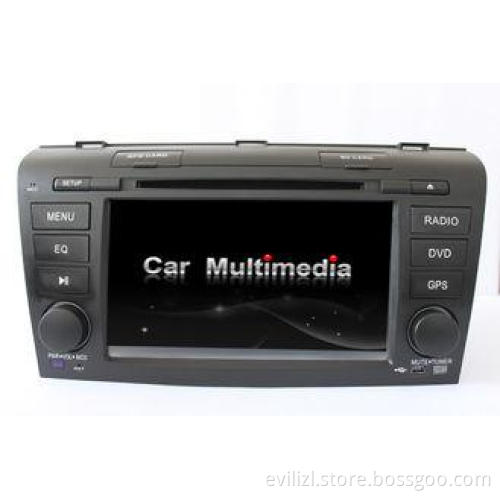

WinCE 6.0 GPS 2003 2004 2005 2006 Mazda 3 Sat Nav Stereos w

Article No.

Car Model

Year

Back light

MZD-7638GD

Mazda 3

2007-2009

Hot selling

1) Multi-language Menu OSD Language: Russian, Turkish, Arabic, Italian, Portuguese, Chinese, English , Spanish, German, French

2) DIY illumination ( there are 12 light color option, you can set the backlight via RGB Combination )

3) Picture in picture

4) Support steering wheel control

5) 3 different background color for choice.

6) 34 different car logo to match different brand of car.

7) The Icon on the menu can be change by yourself .

8) Time display on the menu

Screen

- 7" Inch Digital Screen

- Resolution: 800*480

- Fully Touch Screen Function

- Image Brightness /Contrast/ Color /Saturation adjustable

DVD

- Compatible Format:DIVX5.0/AVI/DVD/DVD+R/DVD-R/DVD-RW/VCD/MP3/CD/CD-RW/JPEG

Built in GPS

- Operation system: Windows CE 6.0

- GPS Processor: SUNSUMG 117

- CPU: Intel PXA255 Processor

- GPS Software: Tomtom, IGO , Route66 ect.

- Main Frequency: 533MHZ

- Storage device: 128MB.

- Chip set: SiRF STAR III

- Dual Zone: Driver can listen to musci or watching TV while navigating.

Blue tooth

- Built-in Microphone in the control panel

- Support MP3 Player function

- Support A2DP ( for playing stereo music from mobile phone via blue tooth )

- Calling Records ( Dialed Call - received call - Missed call )

USB/SD

- USB ( In the back ): Support 32GB , can not support portable hard drive.

- 1 x SD Card Port: support 8GB

I-POD

- Support Audio and I-POD Charge

- Support IPOD CLASSIC / IPOD NANO / IPOD TOUCH

- Not support Video and IPHONE/IPHONE 3G/IPHONE 3GS,

TV

- Built-In Analog TV

-TV system: PAL/NTSC/SECAM auto

Radio

- Built-in Radio Tuner ( 30 Preset Stations )

- FM ( 3*6 ) 87.5-108MHz(Europe), Increment: 0.05MHz

- AM (2*6)522-1620KHz, Increment: 9 KHz

- In Radio mode, can select Europe/ USA /Japan /OIRT radio frequency

- Built-In RDS Radio Receiver

Input

Output

- 1 x Radio Antenna Input

- 1 x TV Antenna Input

- 1 x IPOD Input

- 2 x RCA Video Output ( Back Sight Video Input / AUX Video Input )

- 4 x RCA Audio FR/FL/RR/RL

- Sub woofer output and AUX Audio R/L Input

Optional Function

- DVB-T

- SD Card with map ( The map countries include EUROPE, GULF AREA, OCEANIA and Other Area )

- Rear View Camera

Package including

- 1 × Multimedia DVD Player

- 1 × English User Manual

- 1 × Remote Controller (Battery inside)

- 1 × Power Cable

- 1 × USB wire

- 1 × IPOD wire

- 1 × GPS antenna

Packing

1PC/box, Net weight: 4.0kgs; Gross weight: 5.5kgs,

4PCS/CTN, Net weight: 17kgs; Gross Weight:22KG; Carton SIZE: 52*40*40cm
