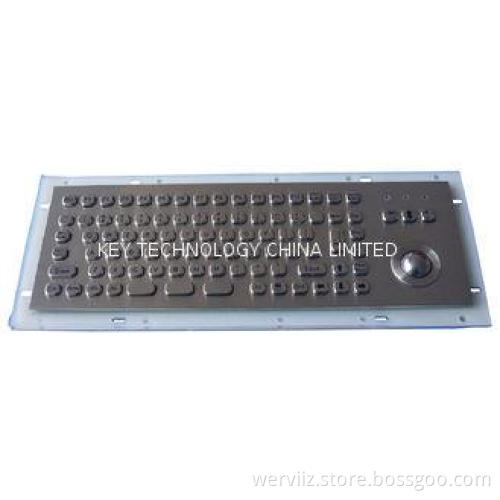

IP65 Waterproof Industrial Mini Keyboard With Trackball / F

Quick Details:

1. IP65 dynamic vandal proof stainless steel industrial kiosk keyboard with trackball

2. 25.0mm trackball, 2 kinds trackball module optional

3. CE,RoHS,FCC etc, IP65, ESD

Descriptions:

1. MINI 81 keys IP65 dynamic Vandal proof stainless steel industrial keyboard

2. with IP68 dynamic rated washable 25mm stainless steel trackball module for fast and and accurate cursor position

with extremely smooth operation

3. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling

for fast and accurate data input without any noise

4. function keys F1, F2..F10, F11, F12 are on the top panel for easy operation

5.3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling,

6. one complete silicone rubber under the top stainless steel plate for easy mounting & sealing tightly with cabinet

7. rear panel mounting solution.

8.2 optional trackball modules:

----IP65 static 400DPI mechanical trackball module,

----IP68 dynamic washable 800DPI optical trackball module,

Special Features:

1. Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design,

functionality,longevity and high protection level. We design and manufacture complete electronic modules including

controller in close consultation with our customers.

2. Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weatherproof especially

under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

3. Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or

liquid and dirt, when mounted in a suitable enclosure.

4. The keyboards have an excellent tactile feel with full long travel switches and allow users to achieve fast and accurate

data input without any noise. With firm tactile perception for comfortable operation.

5. Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent

lettering rub-off.

6. Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key

covers.Ease of customizing with multiple languages, to accommodate foreign or custom variants.

7. Easily mounting into enclosure or panel, and is provided with PS/2, USB connection output cables that plug directly into

the host computer for normal keyboard operations.

8. Optional Trackball Modules:

IP65 static 400DPI mechanical trackball module

IP68 dynamic washable 800DPI optical trackball module,

Pls.see below table:

Applications:

This Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

Specifications:
