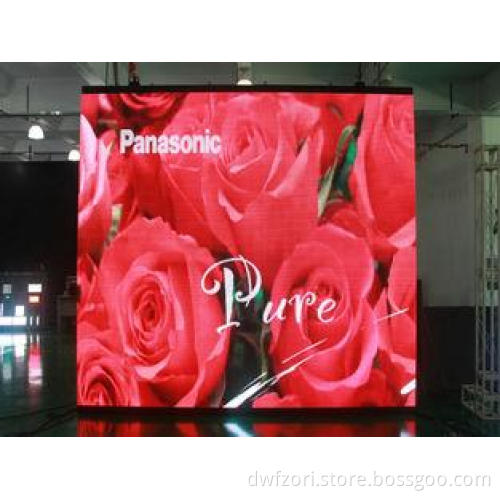

P6 Video Indoor Full Color LED Display Panel , High Definition LED Display 2300cd / ㎡

Quick Detail:

1.Super lighter and thinner; 

2. Easy connection and disassembling; 

3. Wide application, good for rental or fixed installation; 

4. High resolution and high frequency dynamic image.

Specifications:

Part Number	Teeho- P6-8S
Resolution	32(H)×16(V)
Pixel Pitch	6mm
LED Configuration	1R1G1B 3-IN-1 SMD
Pixel Density	27,777 pixels/ ㎡
Module Size	*19296mm**
Driving IC	MBI5024
Driving Method	1/8 Scan, Constant Current
Screen Weight	42kg/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	2,300cd/ ㎡
View Angle	130°/120°
Gray Scale	8bits input, correction with 16 bits
Display COLOR	16.7M
Brightness Adjustment	0~100%
Power Supply
Operation Power	90~260V 50~60Hz
Max. Power Consumption	900W/ ㎡
Average Power Consumption	260W/ ㎡
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	300~1000Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode	1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	5000hours
Protection Level	~
Out of Control Rate	<0.02%
