P10 3-IN-1 SMD Curtain LED Display , IP43 Full Color LED Di

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

Quick Detail:

1.Special design
2.SMD3528 lamp.
3.With flexible design, it is very easy to install.
4.Module material: ABS plastic and Aluminum.

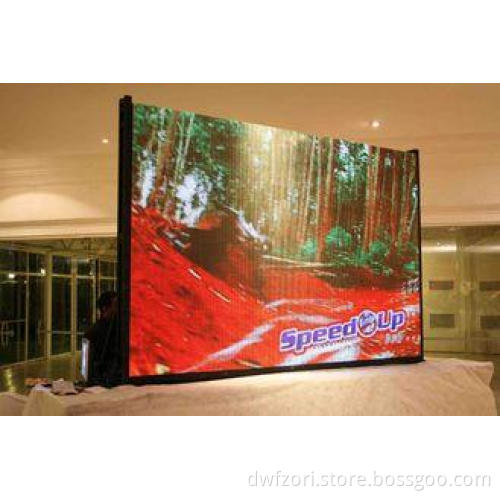

P10 3-IN-1 SMD Curtain LED Display , IP43 Full Color LED Display Screen

Description:

1.LED video Curtain display with CE , ROHS,FCC.

2.High brightness and support brightness automatically adjustment,Mainly used stage show.

3.Long lifespan, can reach more than 50,000 hours;

4.Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED curtain display system;

5.Rich LED curtain display engineering experience both in domestic and international market.

Applications:

Airport&Station

Television Relay

Advertising media

Sports stadiums

Public area

Music concert

Specifications:

Part Number	Teeho-P10
Resolution	48 (H)× 96 (V)
Pixel Pitch	10mm
LED Configuration	1R 1 G 1 B 3-IN-1 SMD
Pixel Density	10000 pixels/ ㎡
Size	480× 960 ×50 mm
Depth	<90mm
Weight	9kg
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	1800 cd/ ㎡
View Angle	150°/150°
Gray Scale	8bits input, correction with 14bits
Display COLOR	16.7M
Transparent Ratio	30%
Brightness Adjustment	0~100% 10 level
Power Supply
Operation Power	90~260V 50~60Hz
Max. Power Consumption	400W/ ㎡
Average Power Consumption	150W/ ㎡
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60~85Hz
Screen Refresh Frequency	500Hz
Gamma Correction	-5.0~+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fiber Optic<10Km
Brightness Correction	Pixel, Module, Cabinet
Environmental
Operating Temperature	-20°~+60°
Operating Humidity	10~95% RH
Operating Life	100,000hours
MTBF	5000hours
Protection Level	IP43
Out of Control Rate	<0.02%
