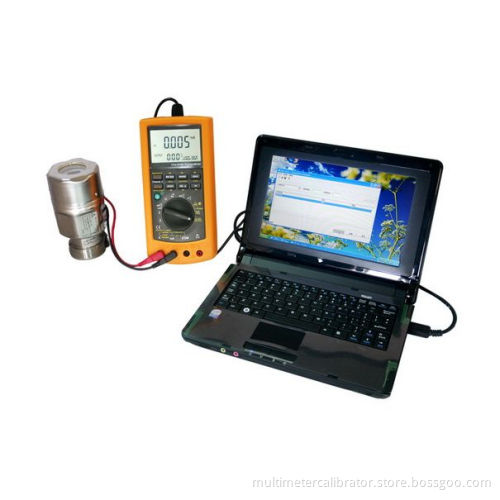

Oem Multifunction Process Dmm And Loop Multimeter Calibrator

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

• Measure ac and dc volts, ac and dc current, resistance, continuity, and frequency

• 0.1% dc voltage accuracy

• 0.05% dc current accuracy, 1 ‘A resolution to 30 mA

• Simultaneous mA and % of scale readout

• True rms ac voltage measurement to 1 kHz

• Frequency measurement to 20 kHz

• Min/Max/Average/TouchHold/Relative modes

• Diode test and continuity beeper

DC current source/loop calibrator

• 20 mA current source/simulator

• Simultaneous mA and % of scale readout

• Manual step (25%, coarse, fine) plus auto step and auto ramp

Safety Conformance

Specifications	Function			Range	Accuracy
Loop Calibrator	DC mA Output (Source mode, 20mA at 1kΩ Burden) Power: Battary			0~20.00mA	±(0.05% + 5digit)
				4~20.00mA	±(0.05% + 5digit)
				0~24.00mA	±(0.05% + 5digit)
	DC mA Output (Simulate Mode 20mA at 1kΩ) Power: Compliance voltage 12V~32V			0~20.00mA	±(0.05% + 5digit)
				4~20.00mA	±(0.05% + 5digit)
				0~24.00mA	±(0.05% + 5digit)
	Current Adjust Mode	Manual: coarse adjustment(1mA), fine adjustment(0.0001mA) and Step 25% Auto: slow smooth ramp, fast smooth ramp, slow smooth rate, fast smooth rate
Multimeter	DCV		0~1000V		±(0.1% + 5digit)
	ACV		0~700V		±(1% + 5digit)
	Resistance		0~40MΩ		±(0.2% + 10digit)
	Frequency		0~20kHz		±(0.05% + 2digit)
	DC mA		0~40mA		±(0.05% + 5digit)
	AC mA		0~40mA		±(1% + 5digit)
	DCA		0~1A		±(0.2% + 5digit)
	ACA		0~1A		±(5% + 5digit)

Mechanical & General Specifications

Size	40 x 100 x 200 mm
Weight	600 g
Batteries	Ni – MH rechargeable batteries
Warranty	2 years
Battery Life	50 hours typical (measurement), 12 hours typical (sourcing 12 mA)
Shock & Vibration	Random, 2g, 5-500 Hz
Shock & Vibration	1 meter drop test
Display current and % of span	Yes
Auto step, auto ramp	Yes
