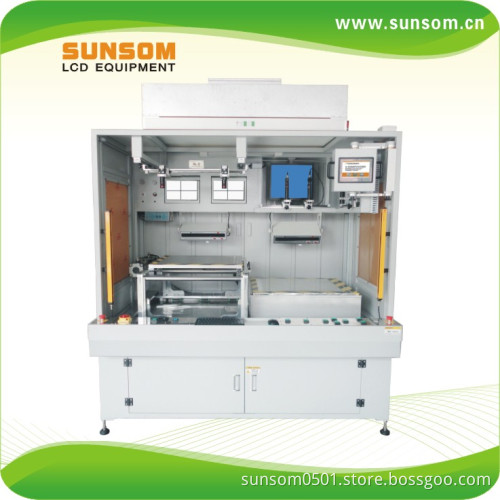

Automatic stencial laminating machine equipment (soft on hard) XCT97-A2

1. About the application field of Automatic stencial laminating machine equipment (soft on hard) XCT97-A2

Automatic stencial laminating machine equipment are widely used in a variety of touch screen laminating (namely glass (COVER LENS) and functional pieces (SENSOR GLASS) fit, maintenance; assembly laminating (capacitive touch screen (CTP) and LCD module (LCM), OLED laminating); OGS laminating (OGS GLASS) and LCD module (LCM), OLED laminating); glass (COVER LENS) and ON CELL display module, IN CELL display module full laminating such as. mobile phone touch screen, capacitive vehicle navigation, capacitive LCD, capacitive tablet PC, LCD / LCM assembly with CTP manufacturer .

2 .About the basic parameters of Automatic stencial laminating machine equipment (soft on hard) XCT97-A2

2.1 Input Power. AC220V 50-60HZ

2.2 Operating modes. 7-inch HMI

2.3 Rated power. 0.75KW

2.4 vacuum treatment. External vacuum

2.5 combined way. Roller up, pan fit

2.6 soft board fixture. automatic alignment adjustment

2.7 Working pressure. 0.8Mpa

2.8 Working environment. 10-60 ℃, 40% - 95%

2.9 Crimp Time. 1 ~ 99s

2.10 Productivity. 5s/pcs

2.11 alarm. alarm light, buzzer

2.12 Security. pneumatic, electronically controlled multi-level protection

2.13 Applicable Size. 500 * 550mm (less)

2.14 Program control. PLC control, servo control, IPC

2.15 Flip mode. Flip cylinder

3. About the functions and characteristics of Automatic stencial laminating machine equipment (soft on hard) XCT97-A2

3.1 Japan SMC brand pneumatic components.

3.2 IPC control device movement, 17-inch LCD surface.

3.3 using CCD visual images camera, servo motor control a three-axis UVW platform automatic alignment.

3.4 two ion blower and a set of FFU addition to electrostatic devices.

3.5 Panasonic servo motor control, control movement.

3.6 protection equipment safety grating, hands start button.
