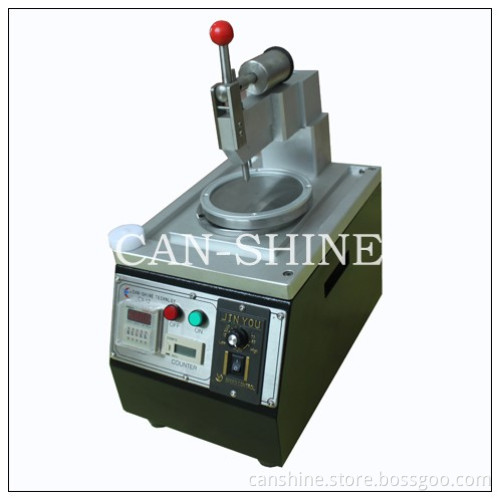

Central Pressurized Fiber Polishing machine

The central pressure polishing machine strength controlled by central pressure.

For PC terminations above 90% could pass 3D interferometer test, while for APC terminations this rate keep 85%.

Each polishing jig for this machine is available as LC,SC, ST,FC,MTRJ,E2000 PC connector as well as angle polishing

Main features:

May process each kind of standard fiber optic connectors, such as FC/UPC/APC,SC/UPC/APC, ST/UPC/APC, LC/UPC/APC, ,MU/UPC/APC, MTRJ,E2000/UPC/APC etc.

Convenience for adjusting pressure, unloading and replacing jigs.

Designed for volume production , high productivity(Can polishing 12-24 connectors per time)

Good connector and face polishing quality, the percentage of products sent back for repair is very low.

Save material and low cost for grinding.

Easy to use and stable.

Display grinding speed which can be adjusted any time.

Synchronous pulley, stable.

The polishing chassis and base made by high quality, hardened steel S136 imported fromGermany

Using the good motors imported (ensuring the movement stable under ultra long time)
Using the Japanese NSK bearing ( ensuring the internal structure to be stable in the high-speed operation, extending the working life)
The electron primary device is imported from OMRON (ensuring the electrical specification stable)
Ferrule diameter:

2.5 mm (0.0984 inch) 1.25mm(0.0492 inch).

Ferrule material:

Zirconia (ZrO2), Quartz capillary, Glass materials, Colophony material Stainless steel and titanium alloy

Main parameter:

Machine Working Voltage: AC220V(AC110V can be offered)

Polishing chassis diameter:110 mm

Polishing chassis beating:≤10 um

Machine net weight:25KG

Machine size:400L*240W*500H

Polishing time setting:0~99 hours 99 Minutes 99 second
