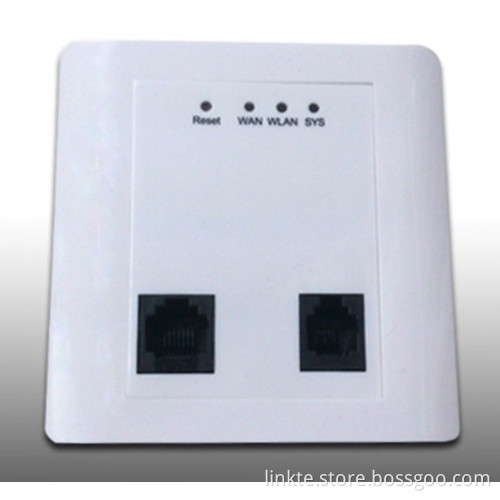

WA150 150Mbps Wireless Wall-mount Access Point
- Payment Type:
- Paypal
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10,000 |
| Supply Ability: | 10,000pcs/Month |
| Payment Type: | Paypal |
| Certificate: | CE/FCC |
| Transportation: | Ocean |
Product Description:
The In Wall Access Point is designed as 150Mbps Internet access for Hotel / MDU System Integrator to provide guests and roomers secure Internet access in their hotel room, guest room, living room and lobby. It is deployed by systems integrator simply to connect with PoE switch, PSTN line.
The In Wall Access Point avoids channels conflict when guests and roomers connect to the Internet as its lowest RF output adjustable to match every room. It enhances security function by utilizing WEP and WPA/WPA2 encryption. With a practical, thoughtful, and compact design, it has 3 levels of adjustment with patented retractable screws to fit any wall jack suitable for stylish hotels, luxury houses, and MDUs (Multi-Dwelling Units).
Product Features:
1, All-In-One Hotel Room Internet WIFI Access
2, Support IEEE802.3af PoE, Passive PoE, 100~240V AC
3, Management software, control all the Local AP.
4, Support Openwrt system, special redesign, stable quality
5, Standard 86mm*86mm box, Easy to Install
6, Wireless auto-channel selection and reduce the signal conflict
Product Specification:
|
Hardware |
||
|
MCU Chipset |
RT5350 / 360MHz |
|
|
RF |
1T1R |
|
|
Memory |
32MB RAM (Max.64MB) |
|
|
Flash |
8MB (Max.16MB) |
|
|
Fixed interface |
1* 10/100Base-Tx WAN( Use internal connection port, hidden conductor input ) 1* 10/100Base-Tx LAN port 1* RJ11 1* USB2.0 port, output DC5V / 1A 1* Power Switch 1* Reset button |
|
|
Antenna |
Internal 2dBi omni gain antenna |
|
|
Frequency |
2.4GHz-2.483GHz |
|
|
Modulation
|
OFDM : BPSK 6/9Mbps, QPSK 12/18Mbps, 16-QAM 24Mbps, 64-QAM 48/54Mbps |
|
|
Dimension ( L * W * H ) |
86 × 86 × 45mm |
|
|
Input voltage |
POE 48V or AC 100~240V input |
|
|
Power consumption |
3Watts (Max.) |
|
|
Software |
||
|
Networking protocol |
PPPoE/ DHCP Client/ DHCP Server/ NAPT/ NTP/ DDNS |
|
|
Firewall |
SPI Stateful pocket Inspects firewall |
|
|
Wireless |
Wireless channel :1~13 Channel bandwidth setting: 20MHz/40MHz Wireless transmit power adjust SSID Hidden Under the same SSI, Wireless client isolation Wireless MAC access control Support 64/128 bit WEP , WPA-PSK, WPA2-PSK Support Key update trigger condition of WPA etc Wireless QoS; WMM |
|
|
Access Control |
Base on URL filter; Base on IP filter; Base on MAC filter; Base on Time filter; Base on Protocol filter Base on Port filter |
|
|
System services |
MAC cloning/Port triggering/UPnP/ Virtual server/DMZ Host |
|
|
Configuration Management |
Base on Web user management.( Remote managed/Locally managed) Up date the system software by HTTP |
|
|
Operating System |
Windows XP/ XP64/ Vista/ Vista64, Windows 7/ Windows7 x64,Linux |
|
|
Environment |
Operating temperature 0oC~40oC Storage temperature -40oC~70oC Relative humidity 10% ~ 90%, Non-Condensing Storage Humidity 5%~95% Non-Condensing |
|
