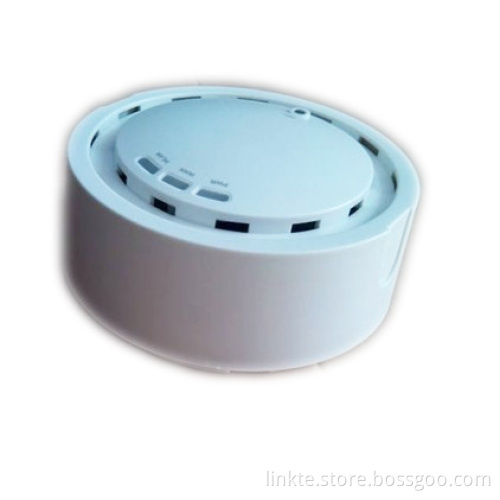

WA302 AR9341 High Power 300Mbps Wireless Ceiling AP
- Payment Type:
- T/T, Paypal
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 25 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 10,000 |
| Supply Ability: | 10,000pcs/Month |
| Payment Type: | T/T,Paypal |
| Certificate: | CE/FCC |
| Transportation: | Ocean |
Product Description:
Multi-function and powerful
The Ceiling wireless AP for office and hotel network provides fast wireless transfer rate. Compliance with the 802.11n standard, The wifi speed up to 300Mbps, and to meet the demand for all data, voice and video streams.
Big Coverage and Easy Installation
Ceiling case design aesthetics and user-friendly installation, it is like a smoke detector, unique ceiling design through simple installation can be firmly adsorbed on the ceiling, the unique structure of the surrounding environment is more decorative role. Support PoE power supply , let the AP to get rid of the restrictions of the power of the access point to be powered via the network cable to simplify installation, the AP layout position more freely.
Advanced Function
Ceiling AP provides advanced wireless security options: WEP, WPA, WPA2 encryption. It also supports AP, AP Client, WDS and Universal Repeater four operating modes, user-friendly flexibility in the use of the formation of the network. In addition, the ceiling AP supports multiple SSID management through a single access point to assign different policies for each SSID
Product Features:
1, Support Passive PoE, 802.3af PoE
2, Comply with IEEE 802.11b/g/n standards, wifi speed up to 300Mbps
3, 800mW High transmit power with good receive sensitivity
4, Support OPENWRT / DD-WRT
5, Provides MAC access control, Provides hidden SSID function
6, Supports Web-based configuration, Firmware upgradeable via Web browser
7, Provides one 10/100M Ethernet interface, and support Auto MDI / MDIX
8, Support automatically adjust the wireless transfer rate
9, Support 64/128 bit WEP Encryption.WPA.WPA2.WPA-Mixed.and security mechanism
10, Supporting SSID broadcast control, effectively prevent the SSID broadcast leak
11, Support WMM,let your voice and video more smooth
12, Support software to control the the AP working status LED is turned on and off, more humane
Specifications:
|
HARDWARE FEATURES |
|
|||
|
Protocol standards |
IEEE 802.11n.IEEE 802.11g.IEEE 802.11b; IEEE802.3af/802.3at IEEE 802.3.IEEE 802.3u.IEEE 802.3x |
|
||
|
CPU |
AR9341 |
|
||
|
SDRAM |
32MB (Max 64MB) |
|
||
|
FLASH |
8MB |
|
||
|
Interface |
1 10/100M RJ45 port,support Auto MDI/MDIX; |
|
||
|
Button |
Reset to Factory Default |
|
||
|
LED(green) |
Power / LAN / WLAN |
|
||
|
Antenna |
Directional internal antenna * 2 |
|
||
|
Power |
Power Supply: DC12V / 1A Power over Ethernet, Support Passive PoE |
|
||
|
WIRELESS FEATURES |
||||
|
Basic functions |
Wireless ON/OFF SSID Broadcast ON/OFF Channel selection:1-14 Channel Width:20MHz.40MHz SSID configuration Multiple SSID configuration Multiple SSID isolation Hide SSID in beacons |
|||
|
Frequency |
2.412----2.4835GHz |
|||
|
Transmission rate |
IEEE 802.11b: 1, 2, 5.5,11 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11n: 150,300Mbps (typical) |
|||
|
Transmit power: |
27±1.5dBm (Max.) |
|||
|
Receive Sensitivity (Typical) |
IEEE802.11n: MCS8 @ -90dBm MCS15 @ -70dBm IEEE802.11g : 6Mbps@ -92dBm 54Mbps@ -72dBm EEE802.11b : 1Mbps@ -93dBm 11Mbps@ -89dBm |
|||
|
Wireless Security |
Wireless MAC address filtering 64/128 bit WEP Encryption WPA-PSK/WPA2-PSK.WPA/WPA2Mixed |
|||
|
SOFTWARE FEATURES |
|
|||
|
System tool |
Traffic Statistics Wireless client list Software control AP work instructions LED on and off Time zone settings Local Web management control Configuration file import and export Web firmware upgrade Configuration: Web-based configuration HTTP / Telnet |
|
||
|
OTHERS |
|
|||
|
Packing Accessories |
300Mbps Ceiling PoE AP User's manual |
|
||
|
Dimensions |
120MM(Diameter)×52MM(height) |
|
||
|
Weight |
≦600g |
|
||
|
Use Environment |
Operating Temperature:-10℃ to 55℃ Storage temperature:-20℃ to 70℃ Work Humidity:10% to 90%RH Non-condensing Storage Humidity:5% to 90%RH Non-condensing |
|
||
