IEC60529 IPX3/4 Oscillation Rain Test System
  • IEC60529 IPX3/4 Oscillation Rain Test System
IEC60529 IPX3/4 Oscillation Rain Test System

IEC60529 IPX3/4 Oscillation Rain Test System

Payment Type:
T/T, Western Union
Incoterm:
EXW
Min. Order:
1 Set/Sets
Min. Order:
1 Set/Sets
Delivery Time:
15 Days
Transportation:
Ocean, Air
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Productivity: 10000sets/month
Supply Ability: 1
Payment Type: T/T,Western Union
Incoterm: EXW
Transportation: Ocean,Air
Product Description
Product Description

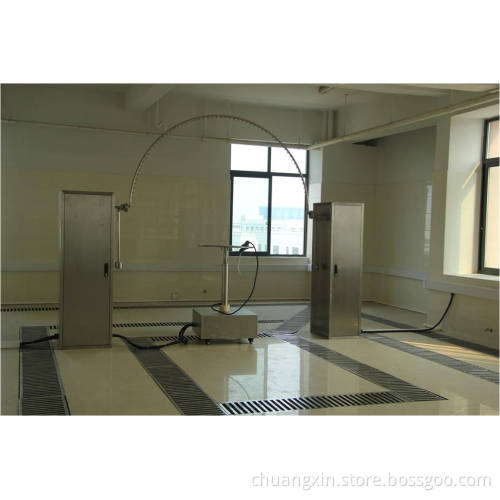

Rain Test System

Application

The rain test system is strictly designed according to IEC60529. It`s applied to the Electrical equipment of the waterproof test of IPX3 and IPX4.

Technology Parameter

Power Supply

Single phase: AC220V, 50Hz

Swing Pipe diameter

19mm, thickness 2mm

Swing Pipe radius

R800 (304 stainless steel)

Orifice diameter

0.4mm

Orifice angle

IPX3: 120°;

IP4X: 180°

Pendulum Angle

IPX3: 120°(±60°);

IPX4: 360°(±180°)

Swing Pipe Speed

EPX3: 4s/time (2x120°)

IP4X: 12s/time (2x180°)

Water discharge

1-10L/min, adjustable

Test time

0-999mins, can preset

Swivel table diameter

700mm

Swivel table speed

(1-5) rpm

Tiltable Angle

15°

Swivel table rotation angle

900°,continuous rotation

Pressure Gage

0~0.25MPa
