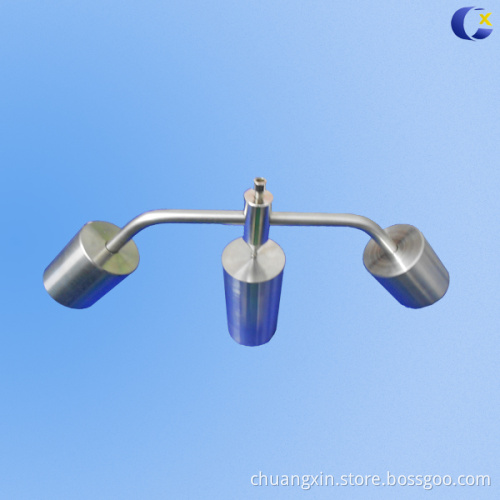

Ball Pressure Device
Ball Pressure Device is used to test the heat resistance of non-metallic materials and solid electrical insulating materials except ceramics. Enclosures and other external parts of insulating material are subjected to the test. The ball pressure apparatus is designed to verify the quality and safety characteristics of products, as required by national & international standards.
Construction:
- ball holder with bore and clamping screw for the bow
- Precision 5mm pressure ball
- Thermocouple for the test stand
- Nickel plated steel materials for good thermal stability
Technical Parameters:
| Ball diameter | 5mm (R2.5mm) |
| Total test pressure | 20N±0.2N |
| Samples bearing | diameter 50mm, length 100mm, solid stanless steel cylinder |
| Production of materials | all used stainless steel materials |
| Remark | Ball pressure instrument takes another a hot box (oven) supporting the use. |
Conforms to:
IEC60238, IEC60309, IEC60320, IEC60335, IEC60598, IEC60601, IEC60669, IEC60670, IEC60745, IEC60884, IEC60950, IEC60998, IEC61058, IEC61558.
