Digital Torsion Meter of the Measurement of lamp cap torque force test

Get Latest Price

Payment Type:: T/T, Western Union

Incoterm:: EXW

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000sets/month
Supply Ability:	10000sets/month
Payment Type:	T/T,Western Union
Incoterm:	EXW
Transportation:	Ocean,Air

Product Description

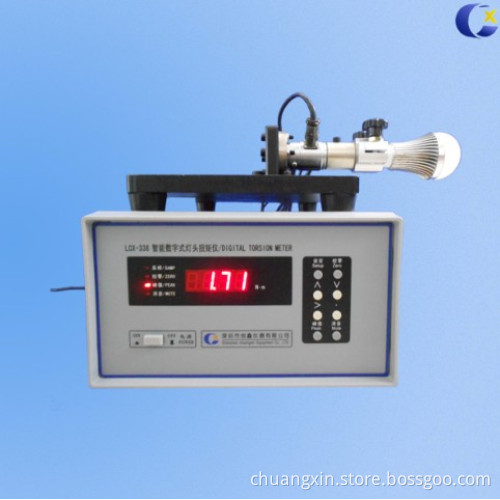

Digital Torsion Meter

1. Fixing with clamp. Rotating the lamp, the positive and negative torque rate will be recorded.
2. Torque range: 0-10N*m (special range is customer-tailored).
3. Lamp cap fixture style: E27, E26, E14, E12, E40(optional), B22d, G5, G13 special cap fixture 1can be ordered for the convenience of test.
4. High performance in reliability, precision and longevity by adopt strain gauge torque sensor
5. Peak torque holding function, upper limit can be set for alarm.
6. Meet the requirements of all national and international standards.

Specification:

Range	0-10N•m
Accuracy	≤1%
Repeatability	≤0.5% FS
Linearity	≤0.5% FS
Lag	≤0.5% FS
Over loading capacity	120% FS
Temperature compensation range	-10°c-60°c
Requirements for environment	Working temperature: 25±5°c
	Relative humidity: ≤65% R.H
	Power: AC 220V ± 10V, 50Hz ± 1Hz
Limitation for environment	Working temperature: 0-40°c
	Relative humidity: ≤75% R.H
	Power: AC 220V ± 10%, 50/60Hz
Store condition	Temperature: -20~50°c
	Humidity<75% R.H.
Dimension	W330mm x H110mm x 335mm
Power	15VA
