Bridge Swing Gate (With TCP IP Communications)
- Payment Type:
- T/T, Western Union, Money Gram
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Productivity: | 2500 sets per Month |
| Supply Ability: | 2500 sets per Month |
| Payment Type: | T/T,Western Union,Money Gram |
| Incoterm: | EXW |
| Certificate: | CE |
| Transportation: | Ocean |
Product Description
Product Description

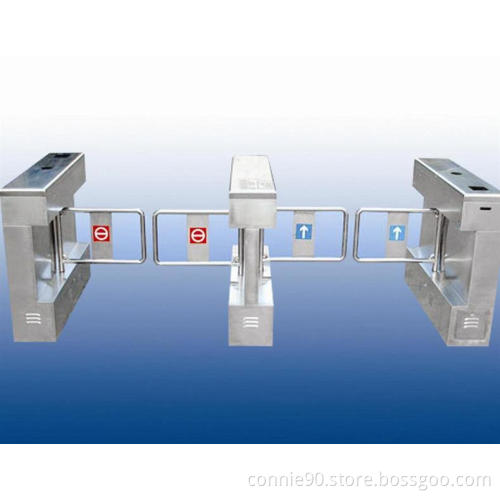

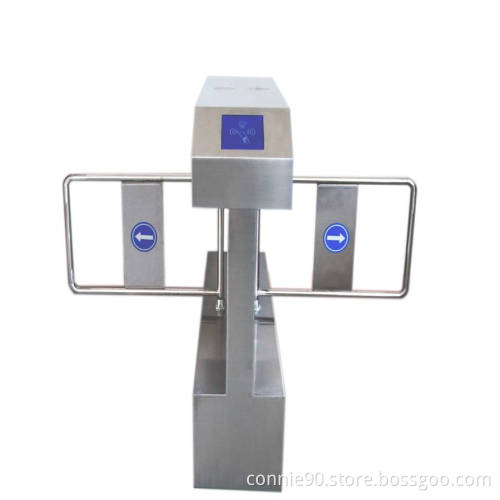

Bridge swing gate TEB-E316 (with TCP IP Communications)
1. Descriptions
Bridge Type Swing Gates for Security System
1).201 stainless steel
2).Fault detection and alarm function
3).High Speed
2.Technical Parameters
Power , AC220C±10V,50HZ
Operating Temperature, -15°C-60°C
Relative Humidity, ≤95%, No Densation
Access Width, ≤700mm
Passing Speed, 50persons/min(IC Card)
Motor, 140W/24V
Motor Operation Speed, 1600R/Min
Communication Distance, ≤1200M
Input Connection, +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
Communication Connection, RS485 Communication Module Standard.
Material, SUS304,thickness is no less than 1.5mm
Running Life, 5--8 Million(Continuous Opening and Closing Operation)
IP, 54
Colour, SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional)
Operation Place, Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise`s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
3.Functions& Features
1)Problem-self-checking function.
2)Many options of working ways: bidirection card reading; one direction card reading and another no reading;
3)When power off, arm open automatically and power on again, arm will be held automatically.
4)When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
5)Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.
6) If passenger pass without card read or valid card read, flap barrier will alarm untill passenger get back
7)Swing barrier is with 485 interface for long-distrance control concern.
8)Anti-rush function: if there is no open single, arm will be holding tightly.
9)Double anti-clipping function: photocell anti-clipping and mechanical anticlipping.
10)Swing barrier is with standard electrical interface for the integration of various readers and writer.
11)Swing barrier can count how many passenger has passed and will show it in the LED display.
12)Direction display to guide passenger which direction is to go.
13)Card-reading with memory or without memory function.
14)Swing barrier can control the population inside in the control of software.
