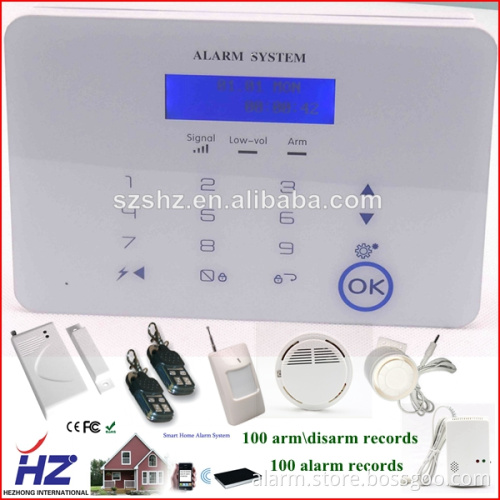

gsm burglar alarm anti theft wireless house security alarm system

gsm burglar alarm anti theft wireless house security alarm system

Introduction

The alarm system adopts SMS data transmission and voice platform of GSM network to send control command and receive alarm message remotely. The system can be armed according to user`s requirements. When a signal is detected by sensors, the sensors will send alarm signal to alarm host immediately. Then the alarm host will send alarm SMS to preset mobile phone numbers, and meanwhile dials its preset telephone/mobile phone numbers automatically.In addition, user can dial the number in the alarm host to remote control the host, such as arm, disarm etc.

Specifications

l Working power: AC=100~230V, DC=12V 1A

l Static current:<50mA (when not charging) Alarm current:<500mA

l Built-in Li-Ion backup battery: 3.7V 800mAH(rechargeable),

l Standby: around 16 hours, Full charging time: 12 hours

l 3-Band & 4-Band optional

l GSM transmit power: 2W

l Receiving and emitting frequency: 433/315/868mhz

l Working condition:Temperature: -10ºC ~ 50ºC Humidity: <80%

l Host dimension: 150 × 107 × 26 (mm)

l Package dimension: 330 ×240 ×80 (mm)

l Zone types: Perimeter zone, Motion zone, Emergency zone

l Definitions:

Perimeter zone: Detecting the space like doors, windows, etc., generally use wireless door magnet sensors

and wireless curtain PIR sensors

Motion zone: Detecting the space like living room, aisles and bedrooms, etc., generally use wireless wide-angle PIR sensors.

Emergency zone: Detecting the space like Emergency area (such as emergency distress, medical rescue, gas leakage and fire alarm, etc., this zone keep 24-hour monitoring status automatically.Generally use panic button,wireless gas sensors & wireless smoke sensors.

Features

1. Touch keypad; LCD displays Date, Day of the week, Time, and current Armed Status,GSM with PSTN
2. Supported Languages: Simplified Chinese\ Traditional Chinese\ English\ German\ French\ and more to meet different market needs..
3. GSM3/4 Band Net trasmission,phone audible alarming and SMS alarming
4. 29 wireless zones (Each zone supports up to 4 sensors) and 2 dedicated zones for remotes (Supports up to 4 remotes or wireless keypads per zone). Sipports 8 more wired zones(Optional).
5. Can preset up to 5 phone numbers and dial in sequence.
6. Intelligent logic analysis technology, corresponding zone number and sensor name can be displayed.
7. Record up to a 10 second greeting for the auto-dialer, Then play the greeting back.
8. Arm\ Disarm the system by 5 ways: SMS, Main Host(Keypad), Wireless Keypad, Keychain Remotes, or even remotely by phones. (PSTN alarm don`t support SMS)
9. Available in AC\DC with Low-voltage Indicators
10. Learning sensors to alarm host, very easy operation.
11. Non-volatile chip, information stored automatically when off power.
12. Check door\window status automatically (This is when the system is disarmed only, if a door is opened, it will sound fast [bi bi bi")
13. Support wireless [ding-dong" doorbell function (Optional)
14. Support CID uploading to CMS(Center monitoring Station) , can user our GSM CID connector to have this function.
15. Disconnection alarm, auto priority to occupy the telephone and monitoring function to hear what is happening.
16. Built-in Li-Ion backup battery, it will alert when low power or without external power supply.
17. Store up to 100 alarm records and 100 arm\disarm records
