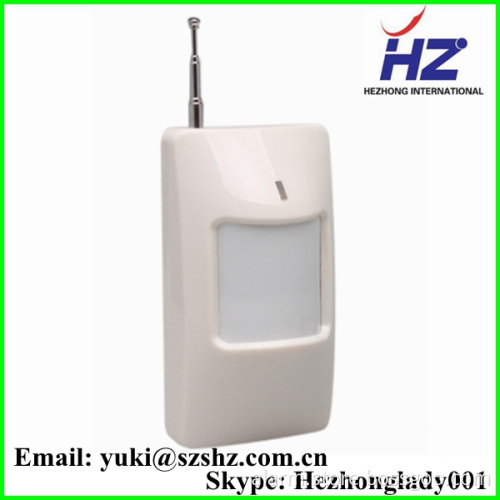

Wireless infrared detector HZ-5500 against the false alarm and alarm system

HZ-5500

Wireless infrared detector HZ-5500 against the false alarm and alarm system

Specifications

1.use different signal processing methods to achieve power saving mode

2.probe code re-use study & easy to control

3.wireless

Description

1. It's wireless passive infrared detector with high stability.

2. It has adopted advanced technology in signal processing and provided superhigh detection ability and antierror alarm.

3. The detector will detect movement of human automatically when intruder pass throughthe detected area, and it will send out alarm signal to alarm host if there is movement.

4. The product is suitable for the safety of residential house, villas, factories, markets warehouses, office building,etc.

Features

1. Wireless transmission of data signals;

2. Low-voltage alarm function;

3. Using ASIC;

4. Full automatic temperature compensation;

5. Ultra-low power consumption, long battery life;

6. SMT proces, resist RFI, EMI interferene

Details

Automatic temperature compensation , low voltage indication , anti RFIEMI interference , dynamic threshold adjustment .

When the wireless infrared monitoring the movement of the body to the active immediately when a particular wireless signal transmitter , remote alarm to the host . Infrared detector wireless alarm signal can be transmitted in the open 100 meters . Have a low voltage indication.

Characteristics

Flame retardant ABS enclosure

LED ON / OFF selectable

Full automatic temperature compensation

Low Voltage Directive

SMT process, anti- RFI, EMI interference

Three pulse count can be adjusted to facilitate the installation of different environments

Dynamic threshold adjustment technology to effectively prevent interference

Technical parameters

Operating voltage: 9V 6F22 battery

Static Battery: ≤ 60μA

Alarm Battery: ≤ 30mA

Detection distance: 12m

Detection angle: 110 °

Transmission Distance: 100m ( open distance )

Undervoltage indicator: yellow LED

Alarm Indication: Red LED

Coverage Area: Far District 11 , District 8 , Near District 5

Sensor: dual pyroelectric infrared sensor

Working temperature: -10 °C ~ +50 °C

Ambient temperature: Maximum 95% RH ( no condensation )

Installation: Wall or corner mounting
