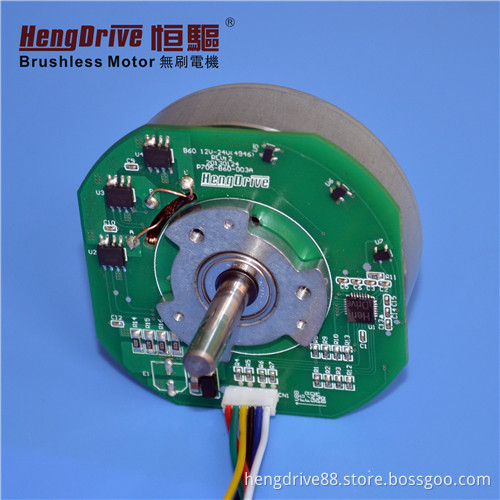

Heng Drive Brushless DC Motor 60mm Outer Rotor
  • Heng Drive Brushless DC Motor 60mm Outer Rotor
  • Heng Drive Brushless DC Motor 60mm Outer Rotor
  • Heng Drive Brushless DC Motor 60mm Outer Rotor
Heng Drive Brushless DC Motor 60mm Outer Rotor
Heng Drive Brushless DC Motor 60mm Outer Rotor
Heng Drive Brushless DC Motor 60mm Outer Rotor

Heng Drive Brushless DC Motor 60mm Outer Rotor

Payment Type:
T/T
Incoterm:
FOB
Min. Order:
3000 Piece/Pieces
Min. Order:
3000 Piece/Pieces
Delivery Time:
35 Days
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: T/T
Incoterm: FOB
Certificate: CE,TS16949,ISO9001
Port: Shenzhen
Product Description
Product Description

B6020s01


B6020S

Outer Rotor

Output Power 5W~60W

Weight : 225g (Approx.)

/

Brushless DC Motor-Typical Application

Automobile Parts: EGR Pump, Urea Pump

Home Application: White Goods, Small Appliance, Electric Fanner, Stirrer, Cross Flow Blower

Medical Apparatus: Medical Pump, Medical Stirrer, centrifugal Machine

Industry Equipment: Air Compressor, Electric Valve

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine, Shredder

Personal Care: Hair Dryer, Massager

Model

 Voltage(V)

No Load

Rated Load

Stall

Operating Range

Rated

Speed (rpm)

Current (A)

Torque (mNm)

Speed (rpm)

Current (A)

Output P. (W)

Torque (mNm)

Current (A)

B6020S-S01

8-26

24

3975

0.19

168.0

2948

2.83

51.87

644

4.3

B6020S-S02

8-26

24

2606

0.11

158.1

1940

1.75

31.13

618

3.5

B6020S-S03

8-26

12

1659

0.13

88.3

1334

1.42

12.33

450

3.5

B6020S-S04

8-26

24

2223

0.10

130

1725

1.34

23.49

580

3.5

B6020S-S05

8-26

24

5263

0.23

180.2

4544

4.34

85.75

1317

7


Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.


If you want the outline drawing and performance curve of this brushless motor, please feel free to contact with me,thanks!
