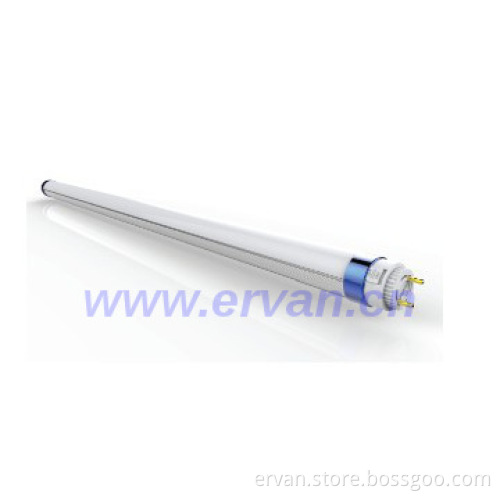

Microwave Sensor Tube with Driver Inside

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Storage Humidity	10%-80%
Operating Temperature	-20~+40℃
Storage Temperature	-40~+85℃
Operating Humidity	10%-80%
Input Voltage:	AC100~277V 50/60HZ
Life	50000 hours
Package	Yes
Light Source Chip	Epistar
Tube Diameter	T8
Length	120cm
Lamp Base	G13
Power	20W
Voltage	90-260V
Illuminant	SMD
Color Tones	Pure White

Detail Description

Advantage for fixture for microwave sensor tube:

Micowave sensor and driver inside
3 or 2 steps dimming control
Patented 180Deg rotating end cap design for the best lighting result
Aluminum PCB better heat dissipation than FR4
Just replace starter with Ervan LED fuse for r etrofit
Single end power anti electric shock ensures safety
Maximum efficacy and minimum glare
High-tech optical design

Feature for fixture for microwave sensor tube:

Lifespan: >50,000hrs

Up to 70% Energy Saving Consumption

High Brightness

Easy Installation

Ballast Bypassed/ Removed

Instant On

High Shock/Vibration Resistance

No Buzzing

Environmental-friendly and less hazardous without mercury

No Radio Frequency Interference

No Flickering

Fast Return on Investment

Technical Specifications for microwave sensor tube:

1. Electrical Specifications:

L05G / 11W / 26*600MM / 108PCS / 1155lm±10%

L05G / 20W / 26*1200MM / 220PCS / 2000lm±10%

L05G / 24W / 26*1500MM / 240PCS / 2520lm±10%
L05G /30W / 26 * 1800MM / 336PCS / 3100lm±10%

Operation Temperature:	-20°C to 40°C
Storage Temperature:	-40° to 85°
Voltage:	100-277V
Frequency:	60HZ-50HZ
Power Factor:	>0.95
Power supply Efficiency:	0.86

2. Photometric Specifications:

LED Luminous Efficiency:	Up to 100lm/w
CRL:	Ra: >80
CCT:	Warm White 3000k
daylight white 4000k
pure white 5500k
cold white 6500k

3. Mechanical Specifications:

Beam Angle: 120°

Light-emitting surface: 230°

Isolated power supply

Latest lockable rotating end cap

Europe safety wired

Frosted or clear cover available on request

Weight: 588MM/210g, 1198mm/368.2g, 1498mm/443.8g

Can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes

Application:

Installation:

Package:

Factory:

Additional Information

Payment Terms	L/C, T/T
Minimum Order	10pcs
Lead Time / Delivery Time	20 Day(s)
Sample Available	YES
Delivery Details	7-10 days for samples, 20-30 days for mass production
FOB Port	Shenzhen
Loading Info	By air, sea or express
Packing Info	600mm 25pcs/innerbox: 722424cm, 50pcs/CTN: 744826cm1200mm 25pcs/innerbox: 1332424cm, 50pcs/CTN: 1354826cm1500mm 25pcs/innerbox: 1632424cm, 50pcs/CTN: 1654826cm
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
