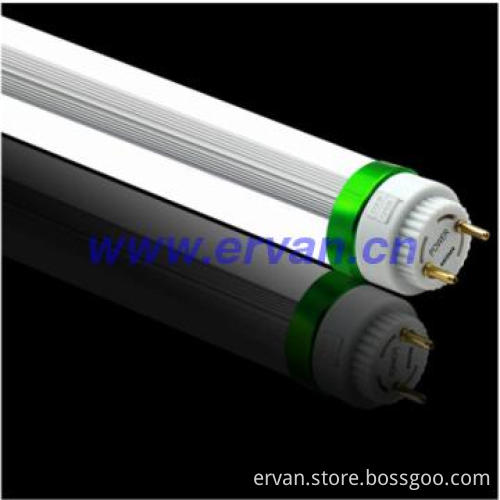

T8 24W gu10 LED Tube Lighting with double sided LED emitting

Description:
T8 24W LED tube lighting

L06G double-sided light-emitting tube led tube light with holder with more
energy efficiency and more space saving.
One tube does the task of two.
It is specially applicable for refrigerators, freezers,
ATM machine, subway, lightbox, etc.

Advantage:
Double sides lighting
Lockable rotating end caps (patent)
3 Years Warranty.
Isolated power supply
Single end power supply
Plastic end caps ensure to pass 4000V HI-POT test
Certificate: TUV, RoHs and UL

Feature:
Light Source: SMD3528/3020 LED
Material: AL + Strengthen PC cover
Lifespan: >50,000hrs
Up to 70% Energy Saving Consumption
High Brightness
Easy Installation
Extended Life
Ballast Bypassed/ Removed
Instant On
High Shock/Vibration Resistance
Environmental-friendly and less hazardous without mercury
No Buzzing
No Radio Frequency Interference
No Flickering
Fast Return on Investment

Technical Specifications:
1. Electrical Specifications:

Model	Power	Dimension (mm)	LED Quantity  (pcs)	Luminous (Frosted lens)	Luminous (Clear Lens)
L06G	15W	26x588(2FT)	144	1300lm±10%	1450lm±10%
L06G	20W	26x1198(4FT)	216 / 220	1800lm±10%	2000lm±10%
L06G	24W	26x1498(5FT)	240	2200lm±10%	2400lm±10%



Operation Temperature:	-20°C to 40°C
Storage Temperature:	-40° to 85°
Voltage:	110V-220V
Frequency:	60HZ-50HZ
Power Factor:	>0.92
Power supply Efficiency:	0.86


2. Photometric Specifications:


LED Luminous Efficiency:	Up to 100lm/w
CRL:	Ra: >80
CCT:	Warm White 3000k
	daylight white 4000k
	pure white 5500k
	cold white 6500k

3.Mechanical Specifications:
Beam Angle: 120°
Light-emitting surface: 230°
Isolated power supply
Latest lockable rotating end cap
Europe safety wired
Frosted or clear cover available on request
Weight: 588MM/178.2g, 1198mm/416.6g, 1498mm/510g
Can be placed in conventional T8 or T10 fluorescent brackets
and replace fluorescent tubes

Applications (Civilian Using & Commercial Using)
Offices, Hotels,   Factories,   Shopping Malls,   Hospitals
Residential/institution buildings
Schools, colleges, and universities
Rail Stations & Airports

Easy installation:
