600mm L06G-V 220Deg T8 Beam Angle LED Tube Light
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
CRI | >80 |
---|---|
PF | >=0.93 |
Power Efficiency | >=0.87 |
Beam Angle | 220° |
LED QTY | 144pcs |
Life | 50000hours |
Color Tones | Natural White |
Tube Diameter | T8 |
Voltage | 90-260V |
Length | 60cm |
Power | 15W |
Lamp Base | G13 |
Lumen | 1425~1575 |
Detail Description

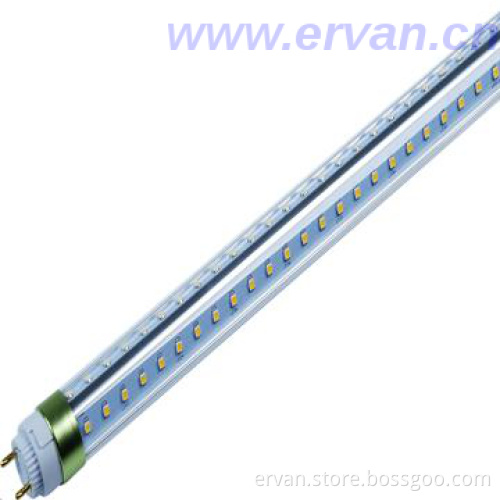

600mm L06G-V 220Deg T8 Beam Angle LED Tube Light
Feature:
Light Source: SMD3528/3020 LED,
Material: AL + Strengthen PC cover
Lifespan: >50,000hrs
Up to 70% Energy Saving Consumption
High Brightness
Easy Installation
Extended Life
Ballast Bypassed/ Removed
High Shock/Vibration Resistance
Environmental-friendly and less hazardous without mercury
No Buzzing
No Radio Frequency Interference
No Flickering
Fast Return on Investment
Technical Specifications:
1. Electrical Specifications:
Model |
Power |
Dimension (mm) |
LED Quantity (pcs) |
Luminous (Frosted lens) |
Luminous (Clear Lens) |
L06G-V |
11W |
26*588(2FT) |
144 |
1100lm±10% |
1350lm±10% |
L06G-V |
15W |
26*588(2FT) |
144 |
1500lm±10% |
1650lm±10% |
L06G-V |
17W |
26*894(3FT0 |
168 |
1700lm±10% |
1870lm±10% |
L06G-V |
20W |
26*1198(4FT) |
216 / 220 |
2000lm±10% |
2200lm±10% |
L06G-V |
24W |
26*1498(5FT) |
240 |
2400lm±10% |
2650lm±10% |
Operation Temperature: |
-20°C to 40°C |
Storage Temperature: |
-40° to 85° |
Voltage: |
110V-220V |
Frequency: |
60HZ-50HZ |
Power Factor: |
>0.93 |
Power supply Efficiency: |
0.87 |
Installation:
Quality Warranty:
5 years Since the date of shippment
Warranty Clause:
1.Under the terms of this warranty,if the product have a failure occurs under normal usage within warranty period,ERVAN will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ERVAN will provide paid maintenance service by under conditions within warranty.
(1) Failure or damage due to force majeure.
(2) Failure or damage due to transport or unloading.
(3) Failure or damage due to incorrectly usage or fail to comply with the User`s Guide and
Caution.
(4) Failure or damage due to demolition , repair , alteration without Manufacturer`s authorization.
3. Please deliver the failure products by original packing for maintenance service,ERVAN will
not responsible for any failure or damage in transportation if customer use non-original
packing or improper packing.
4. ERVAN reserves the right for final explantion of aforesaid terms.
Additional Information
Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
---|---|
Minimum Order | 2pcss |
Lead Time / Delivery Time | 25 Day(s) |
Sample Available | YES |
Delivery Details | 8-12days for samples, 18-25days for bulk production |
FOB Port | Shenzhen |
Loading Info | By air, sea, express |
Packing Info | 0.6m: inner box: 72*24*24cm, CTN: 74*48*26cm0.9m: inner box: 102*24*24cm, CTN: 105*48*26cm1.2m: inner box: 133*24*24cm, CTN: 135*48*26cm1.5m: innerbox: 163*24*24cm, CTN: 165*48*26cm50pcs/ctn |
Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
