T8 LED Tube Light Young Tube T5 Integration LED RE
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| power factor | >0.95 |
|---|---|
| Power efficiency | 0.88 |
| CRI | 80 |
| Light efficiency | 105LM/W |
| Coperaion temperature | -20℃ to 40℃ |
| Life | 50000hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T5 |
| Length | 120cm |
| Power | 20W |
| Color Tones | Natural White |
| Voltage | 90-260V |
| Illuminant | LEDs |
Detail Description

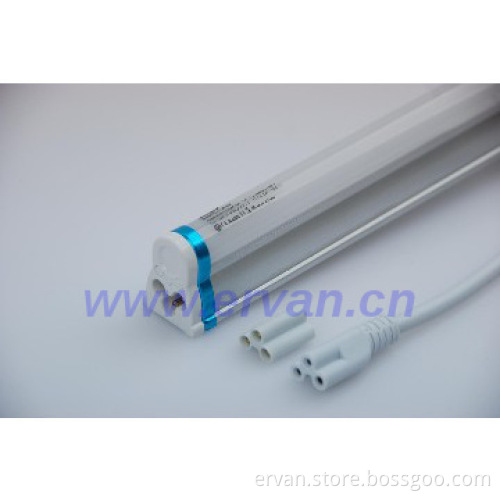

T5-A FIXTURE/BATTEN INTEGRATED T5-A LED TUBE
ERVAN T5 Tube Light integrated the LED and driver. Quick and convenient installation. T5-A long lifetime and low lumen depreciation reducing he maintenance costs due to T5-A slim aluminum form, optical and driver integrated.
Feature for T5 Tube light:
Fixture/batten integrated T5 LED tube can greatly saving labor cost
Quaick installation and easy maintenance
Aluminum PCB better heat dissipation than FR4
Maximum efficacy and minimum glare
Hig-tech optical design
Isolating driver inside
Technical Specifications of T5 tube light:
1. Electrical Specifications:
| Model | Power/w | size/mm | LEDs/pcs | Color | Frosted Lens | Clear Lens | ||
| Lumen | Lm/W | Lumen | Lm/W | |||||
|
T5-A600mm |
11 | 25*33*588 | 108 | 4000k | 1045 | 95 | 1155 | 105 |
| T5-A900mm | 17 | 25*33*894 | 168 | 4000k | 1615 | 95 | 1785 | 105 |
| T5-A1200mm | 20 | 25*33*1198 | 220 | 4000k | 1900 | 95 | 2100 | 105 |
|
T5-A1500mm |
24 | 25*33*1498 | 240 | 4000K | 2280 | 95 | 2520 | 105 |
Operation Temperature: |
-20°C to 40°C |
Storage Temperature: |
-40° to 85° |
Voltage: |
110V-220V |
Frequency: |
60HZ-50HZ |
Power Factor: |
>0.95 |
Power supply Efficiency: |
0.86 |
2. Photometric Specifications:
LED Luminous Efficiency: |
Up to 100lm/w |
CRL: |
Ra: >80 |
CCT: |
Warm White 3000k |
daylight white 4000k | |
pure white 5500k | |
cold white 6500k |
3. Mechanical Specifications:
Beam Angle: 120°
Light-emitting surface: 180°
Isolated power supply
Europe safety wired
Frosted or clear cover available on request
Application of T5 tube light:
Factory:
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 7-10 days for samples20-25 days for mass production |
| FOB Port | Shenzhen |
| Loading Info | More than 500pcs can be FOBShenzhenBy sea, by air or by express |
| Packing Info | 25pcs/inner box, 50pcs/outbox600mm 69*20*23.5cm/innerbox, 70*41*24.5cm/out box1200mm 130*20*23.5cm/innerbox, 131*41*24.5cm/outbox1500mm 161*20*23.5cm/innerbox, 161*41*24.5cm/outbox |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Latin America, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
