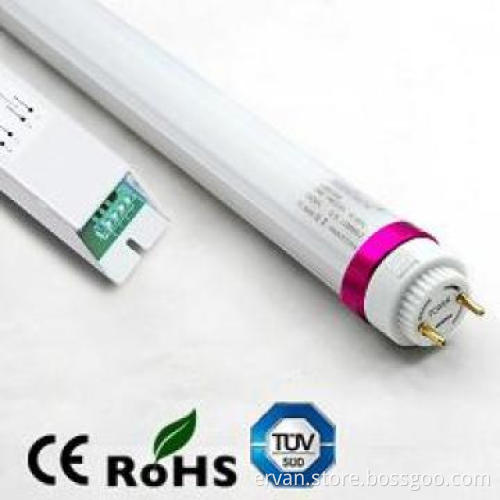

Emergency LED Fluorescent Tubes with CE RoHS Approved



■．Description: Emergency LED fluorescent tubes
T8 LED tube light with double function which combines emergency lighting and
general lighting. When city power cut off suddenly, it can lighting last for
2-4hrs with its own power supply.

■．Advantage:
●Tube with external power supply
●With rechargeable battery
●Lockable rotating end caps (patent)
●Warranty: 3 years for tube
                   2 years for power supply
                   1 year for battery
●Plastic end caps ensure to pass 4000V HI-POT test
●Certificate: CE, RoHS

■．Feature:
(■）Power:
1. Size: 430x40x30mm
2. Input voltage: AC100V-240V
3. Frequency: 60Hz to 50Hz
4. Output power: 9W Max output power: 22W
5. Emergency output voltage: 33V DC
6. Battery capacity: 11.1V 2000mA/h
7. Weight: 620g
8.PF: 0.85
9. Power Efficiency: >0.92
10.Emergency time: 3-5hrs

(■) Feature
●Light Source: SMD3528/3020 LED，
●Material: AL + Strengthen PC cover
●Lifespan: >50,000hrs
●Up to 70% Energy Saving Consumption
●High Brightness
●Easy Installation
●Extended Life
●Ballast Bypassed/ Removed
●Instant On
●High Shock/Vibration Resistance
●Environmental-friendly: Without hydrargyrum or other harmful materials listed in RoHS.
●No Buzzing
●No Radio Frequency Interference
●No Flickering
●Fast Return on Investment

■．Technical Specifications:
1. Electrical Specifications:


Model	Power	Dimension (mm)	LED Quantity  (pcs)	Luminous (Frosted lens)	Luminous (Clear Lens)
L05G-I33V	9W	26x588(2FT)	110	1000±10%	1050lm±10%
L05G-I33V	18W	26x1198(4FT)	210	1800lm±10%	2100lm±10%
L05G-I33V	22W	26x1498(5FT)	240	2200lm±10%	2400lm±10%

Operation Temperature:	-20°C to 40°C
Working humidity:	96%
Voltage:	110V-220V
Frequency:	60HZ-50HZ
Power Factor:	>0.92
Power supply Efficiency:	0.86


2. Photometric Specifications:

LED Luminous Efficiency:	Up to 100lm/w
CRL:	Ra: >70
CCT:	Warm White 3000k
daylight white 4000k
pure white 5500k
cold white 6500k

3. Mechanical Specifications:
◆Beam Angle: 120°
◆Light-emitting surface: 230°
◆Frosted or clear cover available on request
◆Weight: 588MM/156.8g, 1198mm/318g, 1498mm/393g, power supply/635g
◆Can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes

■Applications (Civilian Using & Commercial Using)
Offices, Hotels,   Factories,   Shopping Malls,   Hospitals
Residential/institution buildings
Schools, colleges, and universities
Rail Stations & Airports
