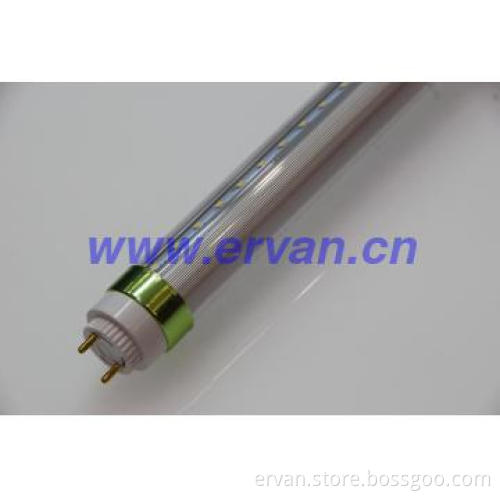

Double Sided Tube with Whole PC Cover LED Tube Lights Price in India

Description:
LED tube lights price in india,special design for cooler, refrigerator and freezer.
All around PC cover for tube avoid electric shock

Advantage:
Double sides lighting
Patented 180deg lockable rotating end cap design for the best lighting result
Aluminum PCB better heat dissipation than FR4
Isolated power supply and Single end power supply anti electric shock ensures saftety
Plastic end caps ensure to pass 4000V HI-POT test
Certificate: TUV, RoHs and UL

Feature:
Light Source: SMD3528/3020 LED
Material: AL + Strengthen PC cover
Lifespan: >50,000hrs
Up to 70% Energy Saving Consumption
High Brightness
Easy Installation
Extended Life
Ballast Bypassed/ Removed
Instant On
High Shock/Vibration Resistance
Environmental-friendly and less hazardous without mercury
No Buzzing
No Radio Frequency Interference
No Flickering
Fast Return on Investment

Technical Specifications:
1. Electrical Specifications:

Model	Power	Dimension (mm)	LED Quantity  (pcs)	Luminous (Frosted lens)	Luminous (Clear Lens)
L06G-P	15W	26x600(2FT)	144	1300lm ±10%	1450lm±10%
L06G-P	17W	26*900(3FT)	168	1700lm±10%	1785lm±10%
L06G-P	20W	26x1200(4FT)	216 / 220	1800lm±10%	2000lm± 10%
L06G-P	24W	26x1500(5FT)	240	2200lm±10%	2400lm±10%



Operation Temperature:	-20°C to 40° C
Storage Temperature:	-40° to 85°
Voltage:	110V-220V
Frequency:	60HZ-50HZ
Power Factor:	>0.92
Power supply Efficiency:	0.86


2. Photometric Specifications:


LED Luminous Efficiency:	Up to 100lm/w
CRL:	Ra: >80
CCT:	Warm White 3000k
	daylight white 4000k
	pure white 5500k
	cold white 6500k

3.Mechanical Specifications:
Beam Angle: 120°
Light-emitting surface: 230°
Isolated power supply
Latest lockable rotating end cap
Europe safety wired
Frosted or clear cover available on request
Weight: 588MM/178.2g, 1198mm/416.6g, 1498mm/510g
Can be placed in conventional T8 or T10 fluorescent brackets
and replace fluorescent tubes

Applications (Civilian Using & Commercial Using)
Offices, Hotels,   Factories,   Shopping Malls,   Hospitals
Residential/institution buildings
Schools, colleges, and universities
Rail Stations & Airports

Easy Installation

Note: Before installation please make sure the power is turned off.
