Basic Specification
| model | FD3.2-2.0 |
|---|---|
| Color | white |
| Rated power | 2000W |
| Max power | 2980W |
Detail Description

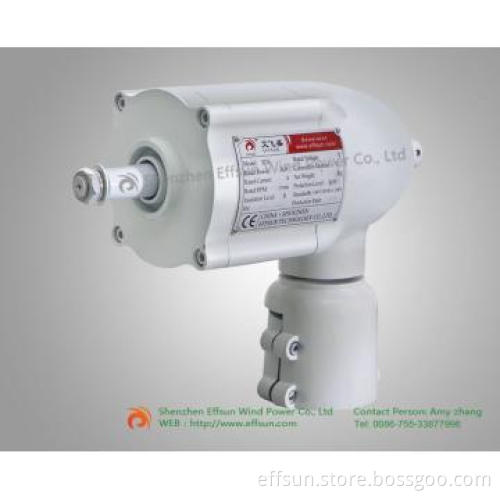

2000w wind generator turbine
Following are detail features of wind generator turbine:
1.Long lifespan:25 years
2.Start-up wind low wind speed
3.High efficiency and low noise
4.Direct driven permanent magnet generator,without the gear box.
5.Aotomatically adjust the facing with direction
6.Anticorrosion
7.Brake system:Mechanical Yawing and Electromagnetic Brake
8.Range of wind power needed: 3-25m/s
9.Controller:on grid and off grid
10.Inverter: Pure sine wave
Please refer to the technical parameter of wind generator turbine:
Technical parameter | |||
Model |
FD4-2/10 |
Generator Rated power (W) |
2000 |
Rotor diameter (m) |
4 |
Generator Rated voltage (V) |
AC 56 |
Working wind speed (m/s) |
3~25 |
Start-up wind speed (m/s) |
2.5 |
Rated RPM (r/m) |
450 |
Environment temperature |
from -25to +45 |
Shell material |
alloy |
Blade material |
fiber glass |
Blade quantity(pcs) |
3 |
Generator style |
3-phase AC PMG |
Matched inverter type |
Sine wave |
Suggested battery capacity |
12v200AH4PCS |
Certificate |
CE,RoHS,ISO9001:2000 |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | after getting the payment in 5 days |
| Loading Info | By sea or by Air |
| Packing Info | Plywood |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
