Basic Specification
| Rated power | 600W |
|---|---|
| color | white |
| IP | 54 |
| MAX POWER | 750W |
Detail Description

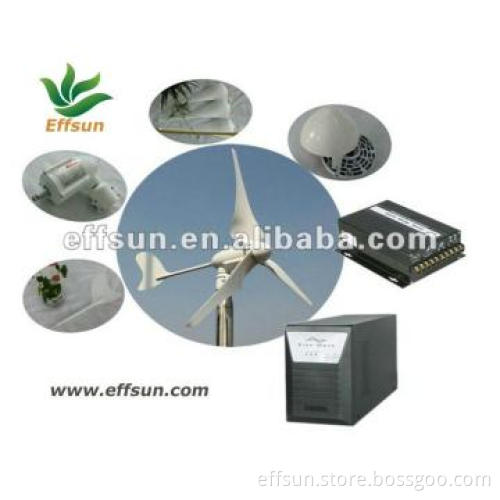

600w wind generator
Characteristics of permanent magnet wind generator:
1. Long lifespan: 25 years
2. Start-up wind low wind speed
3. High efficiency and low noise
4. Direct driven permanent magnet generator, without the gear box.
6. Anticorrosion
6. Brake system: Mechanical Yawing and Electromagnetic Brake
Please refer to the technical parameter of permanent magnet generator wind:
Rated power(w) |
300 |
400 |
500 |
1000 |
2000 |
3000 |
5000 |
10kw |
20kw |
Rated wind speed(m/s) |
8 |
9 |
8 |
9 |
10 |
10 |
10 |
11 |
12 |
Start-up wind speed(m/s) |
2 |
2 |
2 |
2.5 |
2.5 |
3 |
3 |
4 |
4 |
Working wind speed(m/s) |
3~20 |
3~25 |
4~25 |
||||||
Survived wind speed(m/s) |
35 |
35 |
35 |
40 |
40 |
40 |
40 |
45 |
45 |
Rated rotate speed(r/min) |
420 |
420 |
480 |
500 |
450 |
300 |
260 |
200 |
200 |
Rotor diameter(m) |
2.2 |
2.2 |
2.8 |
3.2 |
4 |
5.2 |
6 |
7.5 |
10 |
Generator rated voltage(v) |
AC28 |
AC28 |
AC28 |
AC56 |
AC56 |
AC240 |
AC240 |
AC360 |
AC500 |
Inverter rated AC output(v) |
AC220 |
||||||||
Blades material and quantity |
Fiber glass |
||||||||
Heavy wind protection |
Dump load + Electromagnetic brake |
||||||||
Work temperature °C |
From-30°C to +60°C |
||||||||
Maximum power(w) |
470 |
477 |
738 |
1510 |
2980 |
4159 |
6980 |
14000 |
25300 |
Speed regulation method |
Mechanical Yawing + Electromagnetic Brake |
Mechanical Yawing + Electromagnetic Brake + Manual brake |
|||||||
Generator style |
3-phase AC PM |
||||||||
Tower height |
6m |
6/9m |
9m |
|
|
||||
Shell material |
Alloy aluminum |
Precision steel |
|||||||
Free standing tower height |
6m |
9m |
12m |
15m |
|||||
Matched inverter type |
Sine wave |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | Check out the payment in 5 days |
| Loading Info | by air or by sea |
| Packing Info | plywood |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
