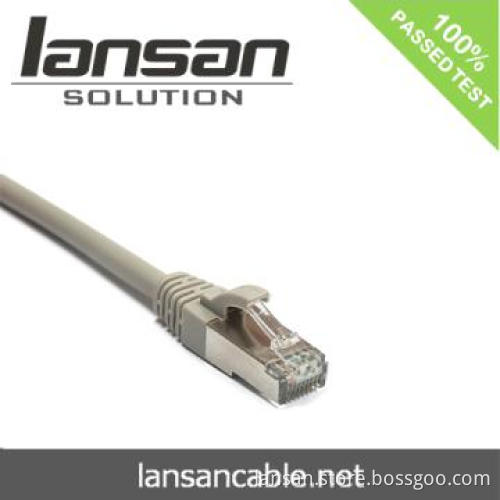

FTP Cat6a Patch Cord (CE/ROHS/UL/ISO)

FTP Cat6a Patch Cord

Specifications
Meet TIA/EIA-568-B.2-10 category 6a
Meet FCC, Part 68, Subpart F

Materials
Cable
Conductor: 7 copper wires, 26 AWG
Insulation: High Density Polyethylene (HDPE)
Number of pairs: 4
Color of twisted pairs: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown
Shield: 2.54 micron (100 microinches) nickel plated brass alloy
Drain wire: 7 wires
Jacket: fire retardant PVC Ø 6.35 ± 0.2 mm (0.25\" ± 0.008\")
Plugs
2 pieces RJ-45 8P8C
Contact: phosphor bronze with 1.27 micron (50 microinches) hard gold plating over 2.54 micron (100 microinches) nickel
Housing: flame retardant PC (polycarbonate) UL 94V-0
Latch guard Material: PVC

Technical characteristics
Storage temperature: -40°C - +70°C (-40 °F - +158 °F)
Operation temperature: -10°C - +60°C (+14 °F - 140 °F)
Relative humidity: 93% noncondensing
Retention: 50 N for 60±5 s
Insertion/extraction life: 750 min.
Tensile strength: ≥ 20 N per wire
Insulation resistance at 100 VDC: 500 MOhm min.
Dielectric withstand voltage (contact to contact): 1000 VDC or VAC
Dielectric withstand voltage (contact to test panel): 1500 VDC or VAC
Contact resistance: 20 mOhm
Current rating: see the diagramm

Low insertion loss
Low back reflection loss
Easy installation
OEM is acceptable
UTP FTP STP SFTP
CE ISO9001 ROHS CCC

ethernet patch cable Application:networking/telecommunication
Product Name:ethernet patch cable RJ45-RJ45 Patch cord
Overview:
Standard: T568A/T568B wiring,
Conductor: copper wires Φ0.20 mm (0.008\")
Diameter of insulated conductor: 0.98 0.05 mm (0.039\" 0.002\").
Number of pairs: 4
Jacket: PVC Φ5.5 0.2 mm (0.22\" 0.008\").

Ethernet patch cable Plugs
2 pieces RJ45 8P8C
Contact: 1.27 micron (50μ inches) gold plated copper alloy.
Molded Boot Material: PVC
Application:
Perfect for use with 10/100 Base -T networks,connecting cmmunication equipments, patch panels and wiring blocks.
Optional:
They are available in a variety of the lengths,colors and connectors. Customer design is available.
Ethernet patch cableSpecifications:
· Standards:
--- ISO/IEC 11801, ANSI/TIA/EIA-568AA
· Optional pairs:
-- 1-4pairs
· PLUGS
-- RJ45-RJ45 8p8c
· patterns
-- 568A, 568B
Ethernet patch cable Features:
· LENGTHS
---1M-100M
· COLORS
---GREY,WHITE,RED,PURPLE,BLUE.GREEN,VIOLET,ROSE,BLACK
Certificate:
· ISO9001 CCC CE ROHS
