Cat6A Cable UTP LAN Cable with high quality
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Impedance ohm | 100+/-15 |
|---|---|
| Dielectric Strength | 2.5kVdc-2 second |
| Type | CAT6A |
| Jacket | PVC |
| Cross | PE |
| Type | other |
| Sheath | PVC |
| Conductor Material | Copper |
| Pressure | Other |
| Voltage | Other |
| Insulation Material | PVC |
| Application | Car, Computer, Construction, Industrial, Marine, Military, Mining, Other, Overhead, Power Station, Railway, Telecommunication, Underground |
Detail Description

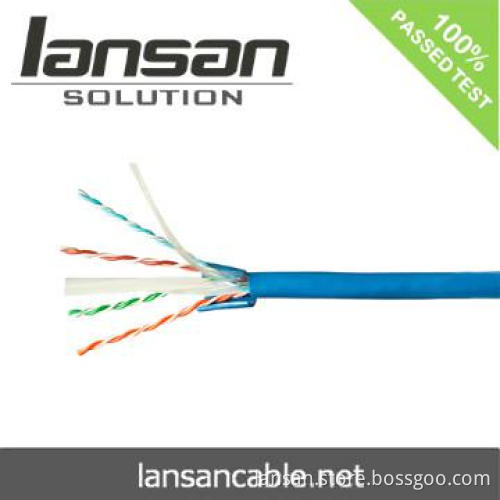

CAT6A Lan Cable
Cable Specification
| Rated Temperature : | 75 Celsius degree; |
| Standard: | TIA/EIA568B.2,YD/T1019-2001; |
| Conductor: | Solid Bare copper;CCA, CCA+CCS |
| Diameter of Conductor: | 0.55mm; |
| AWG: | 23; |
| Insulation: | HDPE; |
| Twisted pair: | 4 pairs; |
| Shield: | No; |
| Drain Wire: | Solid Tinned copper |
| Cross: | PE; |
| Rip cord: | Nylon; |
| Jacket: | PVC; |
Electrical Performance
1 Low Frequency
2 Dielectric Strength:2.5kVdc-2 second
3 DC Loop Resistance:Max 19ohm/100m
4 Resistance Unbalance:Max 2%
5 Insulation Resistance:Min 500 Mohm-km@100-500Vt
6 Capacitance Unbalance(pair to ground):Max
1600pF/100m
Electrical Characteridsitc:
1.0-100.0MHz Impedance (ohms): 100 ohm+/- 15 ohm
1.0-350.0MHz Delay Skew (ns/100m): <=45
Pair-to-Ground Capacitance Unbalance (pF/100m): <=330
Max. Conductor DC Resistance 20oc(ohms/km): 6.58
Application
100Base-T4;
100Bsdr-TX;
100VG-Anylan;
155Mbps ATM;
622Mbps ATM;
Packing
Roll: 305m/roll
Caron,2 rolls or 3 rolls in a Carton;
Productors Description
ISDN, 10BASE-T (IEEE802.3), 100BASE-T (IEEE802.3),
155 Mbps ATM, 100Vg-AnyLAN (IEEE802.12), TP-PMD
(ANSI X3T9.5), 16Mbps Token Ring (IEEE802.5)
Industry Standards: ANSITIA/EIA 568-B.2, EN50173,
EN50288-3-1, ISO/IEC11801
Standard Complicances
1 All Category 6 Requirements as Per ANSI/TIA/EIA, ISO/IEC, and CENELEC EN Standards:
2 ANSI/TIA/EIA 568-B.2 CAT.5e
3 2nd Edition ISO/IEC 11801 Class D
4 CENELEC EN 50173-1
5 IEC 61156-5, CENELEC EN 50288-2-1 Horizontal Cable
6 Flame Retardancy is Verified According to IEC 60332-1
Electrical Characteridsitc:
Frequeney |
Impedance |
RL |
Attenuation |
Next |
Elfext |
Psnext |
Delay |
0.772 |
100+/-15 |
19.4 |
1.8 |
67.0 |
64.0 |
66.0 |
574 |
1.0 |
20.0 |
2.0 |
65.3 |
62.3 |
63.8 |
570 |
|
4.0 |
23.0 |
4.1 |
56.3 |
53.3 |
51.7 |
552 |
|
8.0 |
24.5 |
5.8 |
51.8 |
48.8 |
45.7 |
546 |
|
10.0 |
25.0 |
6.5 |
50.3 |
47.3 |
43.8 |
545 |
|
16.0 |
25.0 |
8.2 |
47.3 |
44.3 |
39.7 |
543 |
|
20.0 |
25.0 |
9.3 |
45.8 |
42.8 |
37.7 |
542 |
|
25.0 |
24.3 |
10.4 |
44.3 |
41.3 |
35.8 |
541 |
|
31.3 |
23.6 |
11.7 |
42.9 |
39.9 |
33.9 |
540 |
|
62.5 |
21.5 |
17.0 |
38.4 |
35.4 |
27.8 |
538 |
|
100.0 |
20.1 |
22.0 |
35.3 |
32.3 |
23.8 |
537 |
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 100 Box/Boxes Easy pull box, reels |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | production start after get deposit. 15 days finish production |
| FOB Port | Shenzhen |
| Loading Info | Contact me |
| Packing Info | Contact me |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
