Basic Specification
| shield | AL Foil |
|---|---|
| jacket | 6.97mm |
| Model Number | RG6 Coxial Cable |
| Type | Coaxial |
| Applications | CCTV/CATV/MATV |
| Length | Other |
| Type | Other |
Detail Description
Specifications

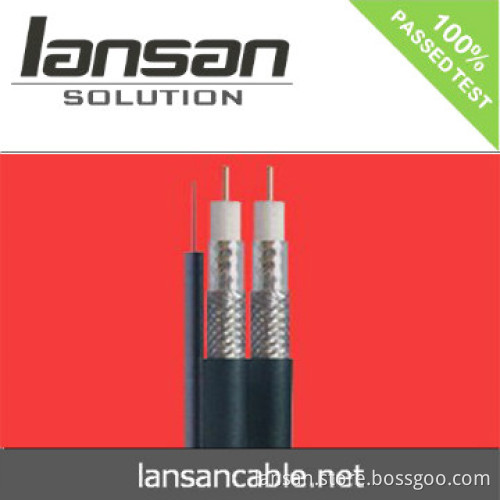

RG6 coaxial cables for CCTV CATV MATV
1.02mm conductor
physical gas injected foam PE(4.57mm)
foil+braid
6.91mm jecket
RG6 coaxial cables for CCTV CATV MATV (specification):
| Component | Standard | Range |
| center conductor | 1.02mm |
Bare Copper,CCS,CCA |
| insulation | 4.57mm | Physical Gas Inject Foam PE,Solid PE |
| shield | AL Foil | bonded/Unbonded AL Foil |
| braid | 0.10, 0.12, 0.13, 0.14, 0.15 and 0.16mm | Braiding Net:32, 48, 64, 72,80, 96, 120, 128 and 144,Coverage:30-97% |
| jacket | 6.97mm | Black,Red,Blue,Yellow,Transparent. flame-retardant |
Electrical Performance:
| Impedance | 75 ohm |
| Capacitance | 54 pF/m |
Applications of our RG6 coaxial cable:
1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
Packing:
Inner packing:wooden reel,plastic drum,paper reel.
Outer packing:carton box and pallet available.
Other packing is available according to the clients requirements
Clients\' specification are welcome. Please feel free to contact me if any enquires.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 600box, 305m/box |
| Lead Time / Delivery Time | 25 Day(s) |
| Sample Available | YES |
| Delivery Details | Terms of Payment: T/T 30% deposit upon order, 70% payment before shipment |
| FOB Port | Shenzhen |
| Loading Info | Contract me |
| Packing Info | Contract me |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
