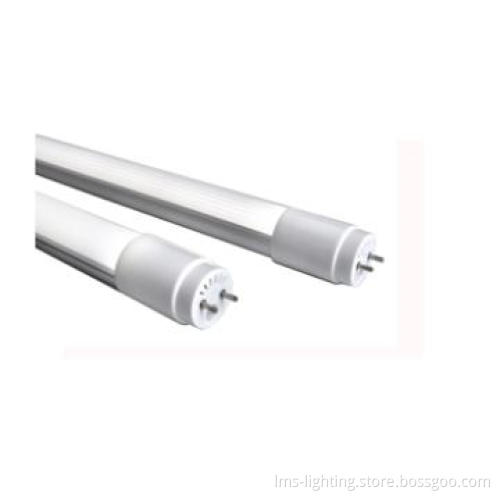

T8 LED Tube 1200mm_Standard Type
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Life | 50000hrs |
|---|---|
| Package | Yes |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Power | 20W |
| Color Tones | Natural White |
| Illuminant | SMD |
| Voltage | 110-220V |
Detail Description
Temperature Parameters(Ta=25℃±3℃)
| LED Surface Temperature | Pcb Surface Temperature | Driver Temperature | Aluminum shell temperature |
| 57.5℃ | 53℃ | 55.4℃ | 51℃ |
Energy reduction comparison
According to authoritative statistics, Spend per 1 kWh of electricity will be emissions of carbon dioxide: 0.997KG, toner dust 0.272KG, sulfur dioxide, 0.03KG, nitrogen oxides 0.015KG, Use one of this product 12 months (24 hours per day) will bring the following economic and social benefits.
| Product | LMS-T8-S1200 (1.2m 20W LED tube lights) |
| Save power in 12 month | 157.68W |
| Reduce carbon dioxide emissions in 12m (KG) | 157.21KG |
| Reduce toner dust emissions in 12m (KG) | 42.89KG |
| Reduce sulfur dioxide emissions in 12m (KG) | 4.73KG |
| Reduce nitrogen oxides emissions in 12m (KG) | 2.37KG |
LEDs Lumen Decrease(Ta=25℃±3℃)
| Operating time(hours) | Lumen decrease(%) |
| 1000hours | 0% |
| 2000hours | 0.5% |
| 3000hours | 0.8% |
| 4000hours | 1.4% |
| 5000hours | 2.2% |
| 6000hours | 3.1% |
Electrical Characteristic(Ta=25℃±3℃)
| Parameter | Symbol | Unit | Min | Typ | Max |
| Input Voltage | Vin | V | 85 | -- | 265 |
| Input Current | Iin | mA | 90 | -- | 270 |
| Input Frequency | f | Hz | 50 | -- | 60 |
| Harmonic Current | THD | % | 12 | 14 | 15 |
| Power Consumption | P | W | 17 | 18 | 19 |
| Power Factor | cosΦ | -- | 0.90 | 0.95 | 0.98 |
| Operating Temperature Range | Top | ℃ | -20 | 25 | +45 |
| Operating Humidity | Hop | %RH | 23 | -- | 93 |
| Storage Humidity | Hop | %RH | -30 | 25 | +70 |
| Open hole Diameter | Hop | %RH | 10 | 20 | 30 |
Photometry Characteristic(Ta=25℃±3℃)
| Parameter | Symbol | Unit | Min | Typ | Max |
| Luminous Flux | flux | lm | 1700 | 1800 | 1900 |
| Lux at 1m | E | lx | 480 | 520 | 560 |
| Lux at 2m | E | lx | 122 | 132 | 142 |
| Lux at 3m | E | lx | 53 | 58 | 63 |
| Color temperature | TC | K | 2800 | 3000 | 3200 |
| 3800 | 4000 | 4300 | |||
| 6000 | 6500 | 7000 | |||
| Colour Rendering Index | CRI | -- | 75 | 80 | -- |
| Half peak side angle (50%) | θ | deg | 110 | 120 | 130 |
| Beam divergence angle(10%) | θ | deg | 160 | 170 | 180 |
Lux Distace Curve
Light Distribution Curve
Spectrogram
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
