LED Downlight, 75mm cutout LED cob downlight with safety belt (WD)
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Finishing Color | Black |
|---|---|
| Material | Aluminum |
| Beam Angle | 40º |
| Light Source | LED |
| Voltage | 220V |
| Application | Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| IP | IP42 |
Detail Description

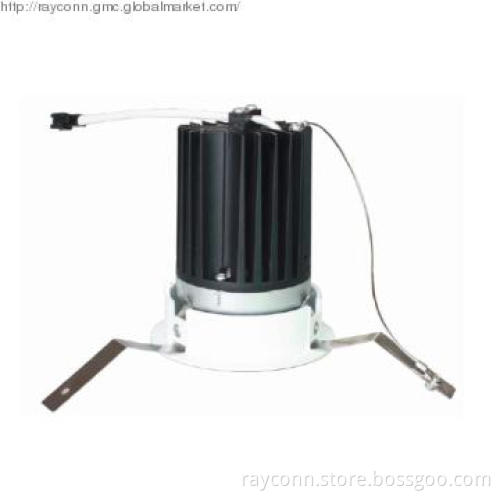

LED Downlight, 75mm cutout LED cob downlight with safety belt (WD)
Features and Benefits:
- Energy saving up to 70%
- 20 x longer life than conventional bulbs
- Extremely low maintenance costs
- High quality light
- Optimal heat dissipation design
- Driver excluding
- Short pay-back period less than 1 year
- No heat, UV or infrared in the beam
- No mercury
- Instant start
Application:
- To be accessorial lights for family , commercial palaces, public , fumiture, hotel store, shop
window, casino and so on .
Technical Parameters:
Name |
Parameters |
Light source: |
CITIZEN |
Input Voltage: |
AC220~240V 50/60Hz |
Power consumption: |
11.5W |
Current |
250mA |
Color Temperature |
2700K, 3000K, 4000K, 5000K |
Color of housing |
White |
Rated life: |
35,000 hours |
Beam angle: |
16°/28°/40° |
Operating temperature: |
-20°C~40°C |
Storage temperature: |
-30°C~60°C |
Color rendering index: |
82 |
Certificate: |
CE/RoHS |
Dimmability: |
Non-dimmable |
Cut hole Diameter |
ø75mm |
Package(mm): |
inner box :105x105x120mm outer carton:430x430x385mm,48pcs/ carton |
Part Number |
Color Temp(k) |
Colour |
Lumen Output (lm) typ. |
Beam Angle |
Light Source |
DL701-P12W6-CT |
2700K |
Warm white |
620±5% |
16°/28°/40° |
CITIZEN |
DL701-P12W6-CT |
3000K |
Warm white |
690±5% |
16°/28°/40° |
CITIZEN |
DL701-P12W5-CT |
4000K |
Neutral white |
720±5% |
16°/28°/40° |
CITIZEN |
DL701-P12W3-CT |
5000K |
Cool white |
750±5% |
16°/28°/40° |
CITIZEN |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | Within 5~10 working days after sample approval |
| FOB Port | Shenzhen |
| Loading Info | ship by air with DHL, UPS, TNT, FedEx, etc. or by sea, depends on customer\'s requirement |
| Packing Info | 1) each in paper inner box;2) outer carton |
| Target Market(s) | Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
