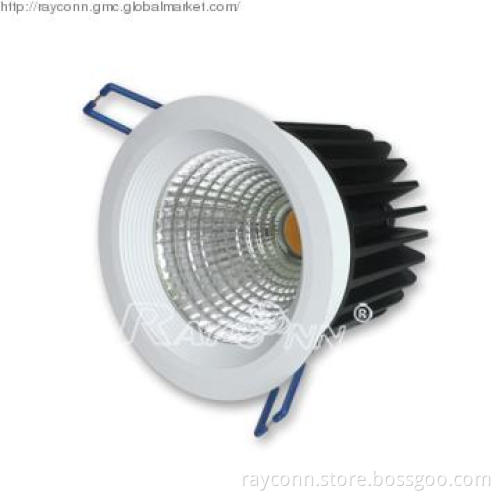

Recessed LED downlight, high power cob LED lamp (WD)
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| lens | frosted & clear PC cover |
|---|---|
| Watts | 14W & 20W |
| cut out | 90mm |
| Material | Aluminum, PC |
| Voltage | 110-220V |
| IP | IP22 |
| Finishing Color | White |
| Application | Airport, Bedroom, Car Park, Cinema, Gallery, Garage, Hospital, Hotel, Meeting Room, Museum, Office, Restaurant, Shopping Mall, Sitting Room |
| Light Source | LED Lamp |
| Beam Angle | 25º |
Detail Description
Recessed LED downlight, high power cob LED lamp
Features and Benefits:
-Energy saving up to 70%
-20 x longer life than conventional bulbs
-Extremely low maintenance costs
- High quality light
- Optimal heat dissipation design
-Driver excluding
-Short pay-back period less than 1 year
- No heat, UV or infrared in the beam
- No mercury
- Instant start
Application:
-To be accessorial lights for family, commercial palaces, public, furniture, hotel store, shop window, casino and so on.
Technical Parameters:
Name |
Parameters |
Light source: |
BRIDGELUX LED |
Input Voltage: |
AC220~240V 50/60Hz |
Power consumption: |
19.6W |
Current |
550mA |
Color Temperature |
3000K, 4000K, 5600K |
Color of housing |
White |
Rated life: |
>35,000 hours |
Beam angle: |
36° |
Operating temperature: |
-20°C~60°C |
Storage temperature: |
-30°C~80°C |
Color rendering index: |
83(WW), 75(CW) |
Certificate: |
CE/RoHS |
Dimmability: |
Dimmable |
Cut hole Diameter |
Ø90mm |
Package(mm): |
inner box :L140*W140*H155mm |
outer carton: 720*295*328mm, 20pcs/ carton |
Ordering Information:
Part Number |
Color Temp(k) |
Colour |
Lumen Output (lm) typ. |
Beam Angle |
Light Source |
DL-P20W3-1W-DX-BL |
5600K |
Cool White |
1400 |
36° |
BRIDGELUX |
DL-P20W5-1W-DX-BL |
4000K |
Neutral White |
1220 |
36° |
BRIDGELUX |
DL-P20W6-1W-DX-BL |
3000 K |
Warm White |
1100 |
36° |
BRIDGELUX |
Dimensions:
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 10 |
| Lead Time / Delivery Time | 7 Day(s) |
| Sample Available | YES |
| Delivery Details | 5-15 days after payment is received. |
| FOB Port | Shenzhen |
| Loading Info | Courier, by sea or by air |
| Packing Info | inner box :L140*W140*H155mm outer carton: 720*295*328mm, 20pcs/ carton |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
