Basic Specification
| Certificates | CE/RoHs |
|---|---|
| Delivery | 7-15 working days |
| Finishing Color | Silver |
| Material | Aluminum, PC |
| Light Source | LED |
| Voltage | 24V |
Detail Description

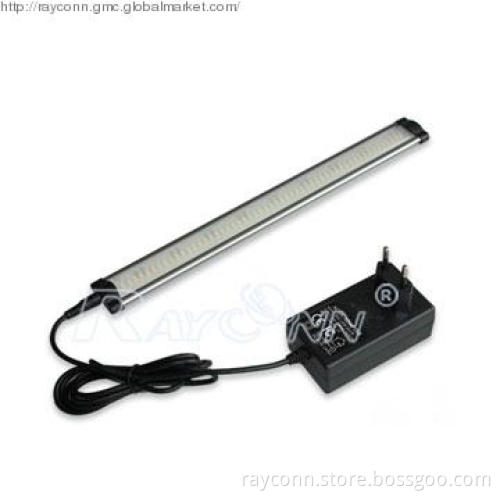

12W plug and play LED cabinet light
Features and Benefits:
1, Energy savings up to 80% comparing to fluorescent and incandescent lights.
2, 30,000 hours life, extremely low maintenance.
3, Eco-friendly, no mercury, leadfree.
4, Slim and compact design.
5, Easy to install, plug and play.
6, Different surface color optional.
7, CRI 90+ version available.
8, CE and RoHS compliant.
9, Design patent pending.
Application:
1, Under-cabinet lighting.
2, Cove lighting, back-lighting.
3, Display lighting for stores, shops.
Technical Parameters:
Light source: 3528 SMD
Number of LEDs 168pcs
Input Voltage: DC 24V
Power consumption: 4W
Rated current: 500 mA
Colors: Cool White; Warm White
Look color ; Silver gray
Rated life: 30,000 hours
Beam angle: 120°
Operating temperature: -20°C~80°C
Storage temperature: -30°C~80°C
Length (mm): L300mm
Color rendering index: 77(CW),73(WW)
Certificate: CE/RoHS
Dimmability: Non-dimmable
Odering information:
| Part Number | Length(mm) | Number of LEDs | Colour |
Luminous Flux (lm) |
Beam Angle | Light |
| CL-P10W3-L1000G- T3 | L=1000 | 168pcs | Cool White | 920 | 110° | 3528 SMD |
| CL-P10W6-L1000G- T3 | L=1000 | 168pcs | Warm White | 920 | 110° | 3528 SMD |
Additional Information
| Payment Terms | T/T, L/C, Others |
|---|---|
| Minimum Order | 1PC |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | If for quantity orders, pls contact us specifically for production lead time |
| FOB Port | Hong Kong |
| Loading Info | We can ship by DHL, UPS, TNT, air or sea, depending on customer requests. |
| Packing Info | One LED cabinet light packed in a whtie box along with accessories, then packed in carton. |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
