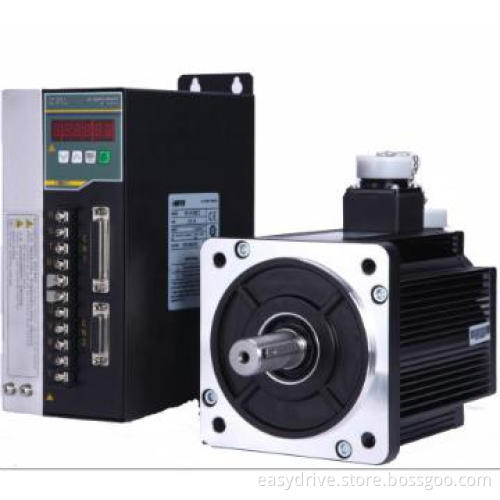

F series cost-effective ac sevo system, economic ac servo system

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Protection degree	IP20
Brand	EVTA
Type	AC-DC-AC
Clour	Gray+White
Port	Shenzhen
Output Current	30A
Zone Of Application	The Middle East
Output Type	Triple
Input Voltage	220v
Output Voltage	220V
Type	DC/AC Inverters
Weight	2.5KGS
Output Power	1 - 200Kw

Detail Description

F series cost-effective ac sevo system, economic ac servo system

Power range: 0.4-7.5KW

Application:

EVTA F series ac servo system is widely applied to various machine tools with accurate and precise position, to assure best cost and high quality of processing technique. Examples are CNC, flame cutter, plasma cutter, pipe bender, coil machine, SMT, candy packing machine and silk-screen printing machine etc.

Ac servo system product characteristics

1.Vibration suppression function

2. With RS485 communication

3. High-speed response function

4. Simple debugging

5.Strong overload ability

6.support position control and speed control and can be switched each other

7.High-speed pulse input

8.Wide speed range operation from 0.1rpm/min to 5000rpm/ min

9.Variety output state monitoring function

Ac servo controller specification List:

Output power(KW)	0.1-1.0	1.0-2.8	2.8-5.5
Drive struction type	A TYPE	B TYPE	C TYPE
Motor rated torque (NM)	0.3-3.3NM	1.3-15NM	7.5-35NM
Input power	Single AC220V -15%-+10% 50/60HZ	Single/3PH AC220V -15%-+10% 50/60HZ	3PH AC220V -15%-+10% 50/60HZ
Control mode	1.position controlmode2.inner speed control mode3.motor speed Motor speed commissioning mode4.motor zero test mode 5.motor load inertia test mode
Dynamic braking	In-built
Control characteristics	Speed frequency response: 200Hz or more
Speed fluctuation frequency:<+0.03(load0%-100%) :<+0.02(power -15%-+10%) (correspond to rated speed)
speed regulation ratio: 1:5000
Pulse frequency
Control input	1. Servo enable 2.alarm clean 3. deviation counter clean/ speed select 1 4.command pulse inhibition/speed select 2 5.CCW torque limit 6.CW torque limit
Control output	1. servo prepared output 2.servo alarm output 3.brake release 4.pulse feedback output
Position control	Input mode	1.position+direction 2.CCW pulse/CWpulse 3.A/B 2 phase orthogonal pulses
Electronic gear ratios	Gear to molecules: 1—32767 Gear to denominator:1-32767
Encoder feedback	2500p/r (resolution:10000) Incremental encoder
Speed control	1. 4 inner speed command 2.(+10v—10v) outer analog voltage command
Protection function	Over speed/over and low voltage/over current/over load/ abnormal braking/abnormal encoder/abnormal control power/abnormal position error
Display \\operation	LED nixie tube , 4 pcs of buttons
Matched load inertia	Lower than 5 00% motor inertia
Weight		3.1kgs
Dimension		206x154x95mm
