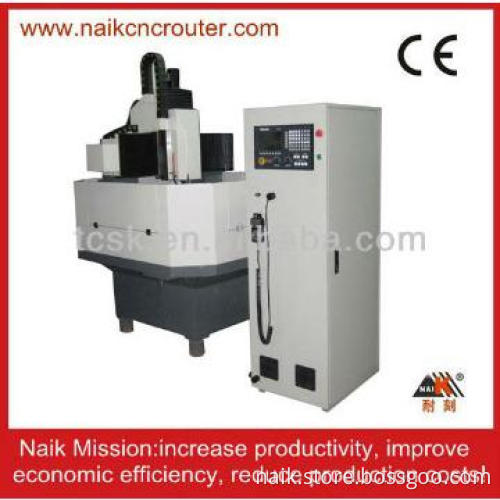

High quality aluminum engraving machine 8STC-6060A
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| aluminum engraving machine | metal engraving machine |
|---|---|
| Weight | 3500kg |
| Total Power | 5KW |
| Application | Clock & Watch |
| Engraving Speed | 6000-8000mm/s |
Detail Description
1 Parameter
| Item No. | 8STC-6060A |
| Platform Size | 650mm(W)*650mm(L) |
| Max working range | 600mm(W)*600mm(L) |
| Z-Axis Traveling Height | 300mm |
| Feeding Height | 350mm |
| Structure | Casting iron CNC centering (Side way, Gantry, Table, Machine frame) |
| Table material | Casting iron CNC centering |
| Absorption | T-clip |
| X/Y/Z axis driving and motor | Japanese Yaskawa servo motor |
| X、Y、Z Axis transmission | Taiwan Hiwin 2510 Auto Anti-gap&doulbe nut Ball Screw C3 grade |
| Rail Configuration | Taiwan Hiwin 25 Linear Square Guide Rail H grade accuracy |
| Positioning accuracy | ±0.02/300mm |
| Spindle power | 3.0 KW constant power spindle (2.2/4.5kw optional) |
| Converter | 3.0 KW Best Brand Converter |
| Spindle Rotating Speed | 0-24000r/min |
| Empty Speed | 0-20000mm/min |
| Processing Speed | 0-20000mm/min |
| Resolution | 0.00625/Pulse |
| Movement Control System | Shanghai Nc studio controlling system NK200 |
| Cooling system | Water Pump |
| Carving Instruction | G-code，ENG，UOO,MMG,NC |
| Collet | 3.175mm,4mm,6mm,8mm, 10mm, 12.7mm |
| Movement Way | Table moving |
| N.W | 2500kg |
| Machine Power | 110/220/380V50HZ±10(lnternal Switch Power) |
| Electric Box | Computer Cabinet |
|
2.Industry: steel mold,plastic mold,die casting mold,aluminum mold,iron mold,copper watch,eye glasses,electric fixture,prototyping,insulation material,phone bag frame etc material surface 3D processing,high accurate products processing. |
3.Factory
4.contact
Skype ID : naik.sales03. We will reply you any questions soonest !
Contact:Tonny Cao
Mobile:+86-13312805765 Email;tonny@sztcsk.cn
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 1 |
| Lead Time / Delivery Time | 20 Day(s) |
| Sample Available | YES |
| Delivery Details | depends on you |
| FOB Port | Shenzhen |
| Loading Info | depends on you |
| Packing Info | Inner package: plastic filmOutside package;wood case |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
