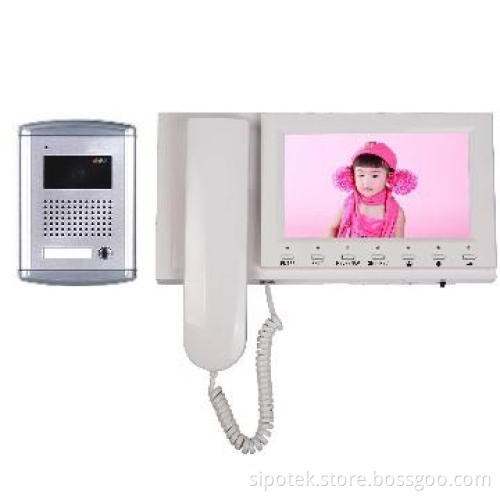

7-inch Color TFT LCD Intercom System with High-definition Pictures
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| camera | 380tv lines |
|---|---|
| screen | 7\'\' tft lcd |
| Talk Range | 600 |
| Frequency Range | Other |
Detail Description
- Specifications:
- B/W and color 1/3-inch CCD camera with night vision
- Outdoor station, door bell, video intercom, audio/video communication
- Optional for extended monitors and handset
- Material: aluminum case
- Flush mounting installation
- Maximum wiring distance: 50m/165t (22AWG, 0.65mm)
- Wiring: 4 wires
- Communications ways: synchronous communications
- Scene illumination: 0.1 Lux (300mm from the camera)
- Scanning frequency:
- Horizontal: 15.75kHz
- Vertical: 60Hz
- Image angular:
- Horizontal: 68 degrees
- Vertical: 55 degrees
- Angular adjustment:
- Left/right: 13 degrees
- Up/down: 4 degrees
- Ambient humidity: 45 to 95% RH
- Ambient temperature: -10 ±40 degrees Centigrade
- Video signal: 1Vp-p 75Ω, PAL or NTSC
- Power source: 12V DC, 160mA
- Dimensions (W x H x D): 99 x 165 x 40mm
- Packing:
- Inner package: 200 x 130 x 74mm
- Carton size: 720 x 310 x 250mm
- Quantity: 20 pieces/carton
- Net weight: 0.7kg
- Gross weight: 0.9kg
- Indoor monitor specifications:
- Display: 7 inches color TFT LCD
- Surface mounting installation
- Calling, intercom
- Watching door entrance
- Pressing button, opening the door
- Be matched all of our outdoor cameras
- Material: plastic case
- Working voltage: 100 to 240V AC, 15V DC (power adapter)
- Working current: ≤400mA
- Wiring: 4 wires
- Chime: ding dong chime
- Communication duration: 6,090 seconds
- Ambient temperature: -10 to 40℃
- Ambient humidity: 4 to 95% RH
- Video signal: 1Vp-p 75Ω, PAL or NTSC
- Dimensions (W x H x D): 284 x 225 x 60mm
- Packing:
- Inner package: 290 x 234 x 80mm
- Carton size: 600 x 420 x 255mm
- Quantity: 10 pieces/carton
- Net weight: 0.78kg
- Gross weight: 0.98kg
- All trademarks shown here are for reference purposes only. They are the property of their respective owners, and we are not authorized to sell items bearing such trademarks.
- Accept: O/A
Additional Information
| Payment Terms | L/C, T/T, Western Union |
|---|---|
| Minimum Order | 100Pieces |
| Lead Time / Delivery Time | 30 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% T/T in advance, balance must be paid before shipping |
| FOB Port | Shenzhen |
| Loading Info | By sea,by air |
| Packing Info | Cartons |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Latin America, Mainland China, Middle East, Southeast Asia, Western & Southern Europe |
