small designed Video Door Phone SIPO-009 with high quality
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| housing | metal |
|---|---|
| Power | Other |
| Power Supply Type | DC |
| Type | Remote Controlled Doorbell |
Detail Description

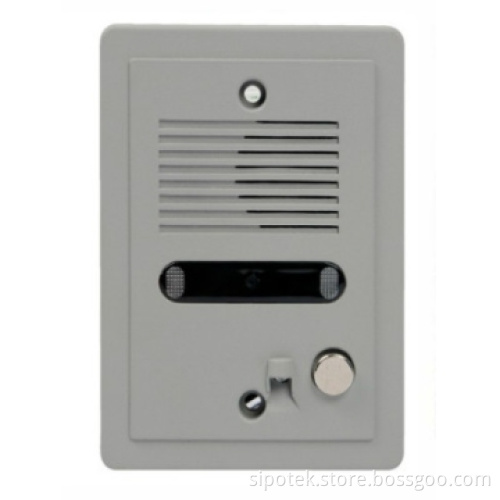

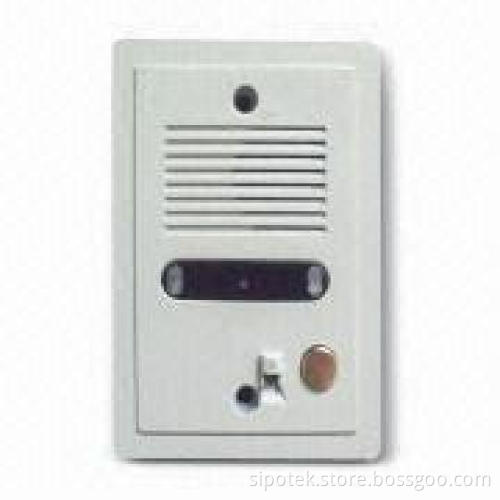

small designed Video Door Phone SIPO-009 with high quality:
| Model No. | SIPO-009 | S IPO-009C |
| Function | Calling, Talk, see the entrance, open the door. | |
| Application | match to all monitors of CX | |
| Housing/Panel | Metal | |
| Camera | Pinhole camera CCD/COMS color or B/W | |
| Installation method | Surface mounting | |
| Specifications | ||
| Image Device | 1/3” B/W CCD/CMOS | 1/3” Color CCD/CMOS |
| Camera | Pin hole camera | |
| Power supply | DC12V | |
| Scene illumination | 0.1Lux(300m from the camera) | |
| Max. wiring distance | 50m/160feet(22AWG,4*0.5mm/2,4*0.75mm/2,Rvv4 cable) | |
| Relative humidity | 45%~95% | |
| Ambient temperature | 75°~-40° | |
| Working current | 230±20mA | |
| Resolution | 380TV lines | |
| Video output | 1Vpp 75ohm | |
| Camera Angular | H 60°V 50° | |
| Wiring | 4wires | |
| Packing information | ||
| Products dimension | 120*88*18MM | |
| Inner package | 188*136*32MM | |
| Carton size | 560*392*186MM | |
| Protection level | IP54 | |
| Weight | NW: 0.184kg GW:0.23kg | |
| Certificates | CE or other required certificates | |
| Business mode | Final products,SKD/CKD, OEM/ODM available |
- Accept: O/A
Additional Information
| Payment Terms | L/C, T/T, Western Union, Others |
|---|---|
| Minimum Order | 100Pieces |
| Lead Time / Delivery Time | 25 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% T/T in advance, balance must be paid before shipping |
| FOB Port | Shenzhen |
| Loading Info | By sea, by air |
| Packing Info | Cartons 560*392*186MM |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Latin America, Mainland China, Middle East, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
