NH310 india color analysis instrument
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Measuring Aperture | 8mm/4mm |
|---|---|
| Storage | 100pcs standards 20000pcs samples |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Repeatability | ΔE*ab 0.06 |
| Illuminating/Viewing Geometry | 8/d |
| Type | Colour Is Chromatic Meter, Cr - 10 Chromatic Meter, HP - 200 Color Difference Instrument, Hampshire Chromatic Meter, Hangzhou Chromatic Meter, Love Lubricious Li Chromatic Meter, Measuring Colored Differential Gauge, Minolta Color Difference Meter, Other, Portable Chromatic Meter, Precision Chromatic Meter |
| Measurement Precision | 0..07 |
| Measuring Range | 0-100 |
Detail Description

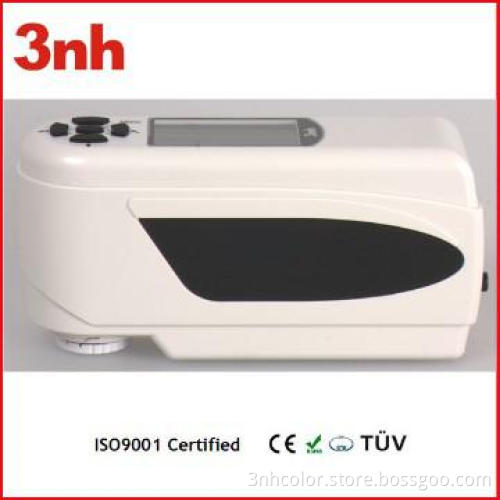

NH310 india color analysis instrument
Specifications
Model |
NH310 india color analysis instrument |
|
Display Mode |
CIE L*a*b; CIE XYZ; CIE RGB;CIEL*u*v; CIE*C*H; Whiteness &Yellowness; Color Fastness |
|
Color Difference Formula |
ΔE*ab; ΔL*ab; ΔE*C*H; ΔECIE94; ΔEHunter |
|
Illuminating/viewing geometry |
8/d (8°illumination angle/diffuse viewing) |
|
Light Source |
LED blue light excitation |
|
Detector |
Silicon photoelectric diode |
|
Measuring Aperture |
Φ8mm; Φ4mm; Φ8mm extended aperture (optional) |
|
Measuring Conditions |
Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65; D50; A |
|
Measuring Range |
L: 0 to 100 |
|
Repeatability |
Standard deviation within ΔE*ab 0.06 (Measurement Conditions: Average of 30 measurements of standard white plate) |
|
Storage |
100 pcs standard samples; 20000 pcs test samples |
|
Minimum Interval Between Measurement |
Approx. 1 sec |
|
Battery Life |
More than 3000 measurements |
|
Lamp Life |
more than 1.6 million times in 5 years |
|
Display |
TFT True-color; 2.8 inch@(16:9) |
|
Interface |
Model B: USB RS-232: Baud rate 19200bps |
|
Operating Temperature Range |
-10°C to 40°C (14°F to 104°F) |
|
Storage Temperature |
-20°C to 50°C (-4°F to 122°F) |
|
Humidity Range |
less than 85% relative humidity, no condensation |
|
Weight |
500g |
|
Dimensions |
205 x 70 x 100 mm |
|
Size of the Packing |
435 x 205 x 345mm |
|
Standard Accessories |
AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture; Φ4mm Measuring Aperture |
|
Optional Accessories |
Extended Aperture(Φ8mm); Mini-printer; Printer Cable, Universal Test Components, Powder Test Box |
Additional Information
| Payment Terms | L/C, T/T, D/A, D/P, Credit Card, Western Union, Money Order, Paypal, Others |
|---|---|
| Minimum Order | 2 |
| Lead Time / Delivery Time | 2 Day(s) |
| Sample Available | YES |
| Delivery Details | TT IN ADVANCE |
| FOB Port | Shenzhen |
| Loading Info | FOB SHENZHEN |
| Packing Info | 1 SET/ CARTON |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
