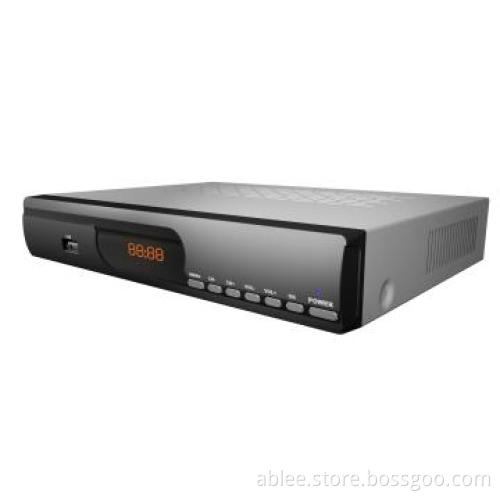

DVB-T2 / MPEG4


Main features:

Stable and competitive chipset from Mstar

Fully compliant with DVB-T2 / DVB-T standard

Support MPEG-2, MPEG-4, H.264 decoder

HDMI1.3 interface

1080p / 1080i / 720p / 576p / 480p / 576i / 480i output supported

Auto and manually scan all available TV and radio channels

Aspect ratio 16:9 and 4:3

Multi-language OSD & Subtitle available

7-day EPG function

Supports teletext (VBI or OSD)

USB2.0 support PVR, playback and software upgrade

USB PVR: record one channel to USB while watching another channel (two channels should be in one frequency point)

Support external HDD via USB, the HDD need it’s own power supply if necessary

Time-shift function

More than 1000 channels

Parental lock


Tuner
Silicon tuner

RF input connector: IEC 169-2 female

Input Frequency range: VHF: 174MHz - 230MHz / UHF: 470MHz - 862MHz

Input impedance: 75 ohm

Bandwidth: 6/7/8MHz

RF by pass (loop) IEC 169-2 male

Loop through: 177.5 - 866MHz

Signal input level: -78 ~ -20dBm

Modulation & Demodulation
Standard: ETSI EN 302 755 V1.1.1 (2009-09)

Guard interval models: 1/4, 1/8, 1/16, 1/32

FEC Modes rate: 1/2, 2/3, 3/4, 5/6, 7/8

Modulation: COFDM

FFT Size: 1K, 2K, 4K, 8K, 16K, 32K.

Constellation: QPSK, 16QAM, 64QAM and 256QAM

Video decoding
ISO/IEC 13818-2 MPEG-2 MP@ML, up to 1080p@30fps

ISO/IEC 14496-2 MPEG-4 SP and ASP, up to 1080p@30fps

Option for DivX1 3.11, 4.x, 6.x, Home Theater & HD profile

ITU-T H.264, ISO/IEC 14496-10(MP&HP@L4.1), up to 1080p@30fps

VC-1 MP@HL and AP@L3, up to 1080p@30fps

Option for RealMedia Decoder, up to 720p@30fps, RV8/RV9/RV10 supported

Hardware JPEG integrated, scaling down ratios:1/2,1/4,1/8

Supporting movie files with MPEG1 / MPEG2 / MPEG4 / H264 / VC-1 / Motion JPEG (.flv / .rm / .rmvb / .avi / .mpg / .dat / .vob / .div / .mov / .mkv / .mjpeg / .ts / .trp)

Audio decoding
Standard: ISO/IEC13818-3 TR1011154

IEC60958 PCM or IEC61937 compressed audio format supported

Audio decoder compliant with MPEG-1 and MPEG-2(layer I&II), MP3, WMA, AAC, HE-AAC

Dolby digital (AC-3): Optional

Sample rate: 22.1KHz, 32KHz, 44.1KHz, 48KHz

Input / Output and display
RF in / out, single tuner
HDMI1.3 output
Coaxial digital output
YPbPr / YUV output
RCA x 3 A/V output
TV Scart output (optional)
LED display (orange color, 4*8 type)
Power indicator: power, signal lock
IR receiver: 38KHz

Power supply
Power input: AC ~ 220V – 240V, 50Hz
Power consumption: < 10W
Standby: < 1W

Accessories
Remote control unit: 1pc
User manual: 1pc
AV cable: RCAx3, 1pc
