LC9354 , 12V High Efficiency LED Driver
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| power | 3-8 x1W |
|---|---|
| color | white |
| Input voltage | 100-240vac 50/60hz |
| Out voltage | 3-36Vdc |
| Efficiency | 68% |
| Life | over 50,000 hours |
| Power | 8w |
| Dimmable | Yes |
| Voltage | 24V |
| IP | IP67 |
Detail Description
12V High Efficiency LED Driver
Model No. LC9354 Specifications:
Power：1-8x1W
Input：
Voltage: 100-240Vac
Frequency: 50Hz/60Hz
Efficiency: 80% typical
Power Factor: >0.98
Output：
Current: 350mA
Voltage: 3-36Vdc
Wattage: 12W
LED no. to drive: 1-8 pcs 1W LED
Temperature:
Operating Temperature: -20℃ ~ +60℃
Case Temperature: 65℃
Wiring Way: leads or AC plug
Warranty: 2 years
Safety: UL, cUL and CE approved

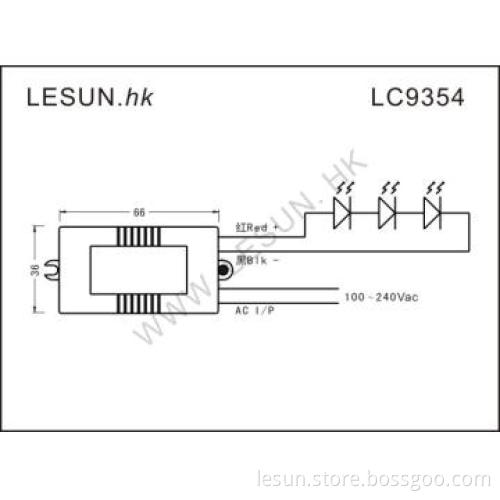

Dimension: 66Lx36Wx23H (mm)
Input Voltage: 100-240Vac
1-8 x 1W LED
Technical Features:
a. Small size with universal input voltage for worldwide use.
b. This device drives LEDs with Constant Current, resulting in constant brightness and extends life time.
c. Protection against short circuit and overload.
d. Designed to drive 1 to 8 Lumileds Luxeon 1W with 350mA constant current outpuut.
e. IP 67 Waterproof.
If any problems please kindly send E-mail to me :sales@lesunlighting.com
Thanks~
Additional Information
| Payment Terms | T/T, Others |
|---|---|
| Minimum Order | 10PCS |
| Lead Time / Delivery Time | 10 Day(s) |
| Sample Available | YES |
| Delivery Details | Delivery in 10 days upon payment received |
| FOB Port | Shenzhen |
| Loading Info | By air |
| Packing Info | Container loading according to practical goods condition |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
