Olymbar Outdoor Full Color LED Display P15/P20
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Olymbar Outdoor | Full Color LED Display |
|---|---|
| Voltage | 110-220V |
Detail Description
Olymbar Outdoor Full Color LED Display
We developed this Olymbar for the 2008 Beijing Olympic Games. As the main structure of the LED strip is made of magnesium and aluminum alloy material, it features light weight and high strength, enabling it to sustain thousands of moving performers.

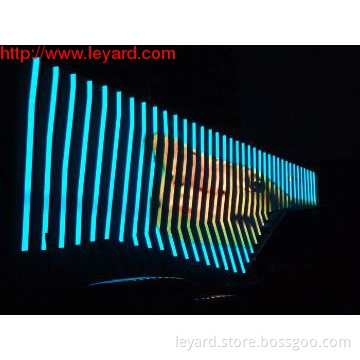

In the opening ceremony of 2008 Beijing Olympic Games, our creative LED display impressed millions of audiences with its wonderful video effect.
Features

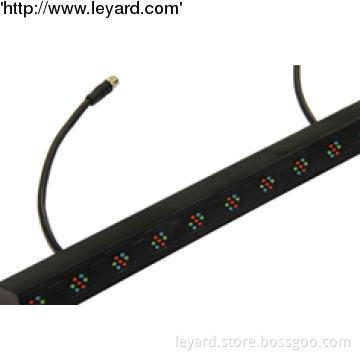

1. Our creative LED display can be 1500mm and 1000mm in length.

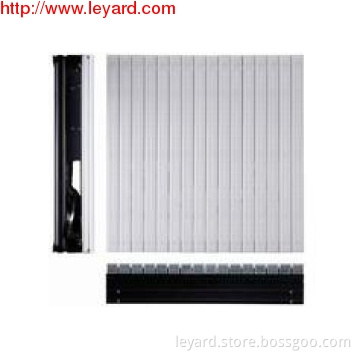

2. Mg, Al-Alloy material cabinet is the perfect combination of lightness with firmness.
3. The LED display can sustain heavy load (202.64N/cm2) without video distortion.
4. UV proof and IP65 protection rating.
5. In addition to flat screens, curved video screens and special-format screens can be realized.
6. Both rigging and standing installation are available.
7. Be able to show lighting effect, figure, letter, animation and video intelligently.
| Item | Olymbar-15A | Olymbar-15B | Olymbar-20 | |
| Module component | Pixel Configuration | 3-in-1 SMD | 3-in-1 SMD | 3-in-1 SMD |
| Physical Pitch (mm) | 15(W)×15(H) | 15(W)×15(H) | 20.83(W)×20.83(H) | |
| Module resolution ratio(W×H) | 2×32 | 2×32 | 72×2 | |
| Module Size(mm) | 30(W)×480(H) ×28(D) | 30(W)×480(H) ×28(D) | 1500(W) ×41.66(W) × 45(D) | |
| Module Weight (kg) | 0.2 | 0.2 | 1.75 | |
| Module Max Consumption (W) | 5 | 5 | 50 | |
| Unit component | Unit Module compose (W×H) | 16×1 | 16×1 | 1×24 |
| Resolution Unit | 32×32 | 32×32 | 72×48 | |
| Unit Size(mm) | 480(W)×480(H)×100(D) | 480(W)×480(H)×100(D) | 1500(W)× 1000(W) × 125(D) | |
| Unit Square(m ) | 0.2304 | 0.2304 | 1.5 | |
| Weight( kg/m) | 9;39 | 6;32 | 60 ;40 | |
| Pixel Density (spot/m) | 4444 | 4444 | 2305 | |
| Protection Level | IP65 | IP43 | Front IP65 ;Back IP43 | |
| Flatness of cabinet | ≤1 | ≤1 | ≤1 | |
| Optical Specifications | Brightness(nit) | ≥2000 | ≥2000 | ≥5500 |
| Color Temperature(K) | 3,200K to 9,300K adjustable | 3,200K to 9,300K adjustable | 3,200K to 9,300K ajustable | |
| Horizontal Viewing Angle ( °) |
160 | 160 | 160 | |
| Vertical Viewing Angle( °) | 145 | 145 | 145 | |
| Light center Distance Deviation | < 3% | <3% | <3% | |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% | |
| Color Uniformity | Within ±0.003Cx,Cy | Within ±0.003Cx,Cy | Within ±0.003Cx,Cy | |
| Electrical Specifications | Power Consumption (W/cabinet; W/m ) |
Max:320;1041 | Max:320;1041 | Max: 540;810 |
| Average: 107;347 | Average: 107;347 | Average: 180;270 | ||
| Power Supply | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | |
| Processing Performance | Drive mode | Constant Current Driving | Constant Current Driving | Constant Current Driving |
| Frame Rate(Hz) | 50&60 | 50&60 | 50&60 | |
| Refresh Rate(Hz) | 1920 | 1920 | 1920 | |
| Operation Specifications | Lifetime (Half Brightness)(h) | 100,000 | 100,000 | 100,000 |
| Temperatures(℃) | Operating:-20-45 | Operating:-20-45 | Operating:-20-45 | |
| Storage:-30-60 | Storage:-30-60 | Storage:-30-60 | ||
| Humidity(RH) | Storage:10 - 90% | Storage:10 - 90% | Storage:10 - 90% | |
| Operating :10 - 95% | Operating :10 - 95% | Operating :10 - 95% |
Additional Information
| Payment Terms | T/T |
|---|---|
| Minimum Order | 5 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | NO |
| FOB Port | Shenzhen,Yantian |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
