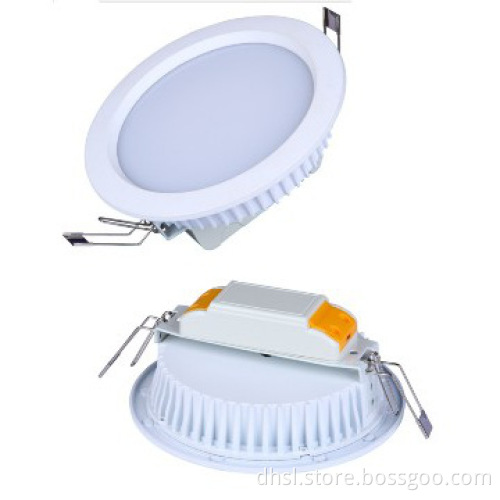

4inch 10W led downlights smd5630 LEDs+isolated driver

Model No.	Product Specification Description
power	lamp Size(mm)	cut hole (mm)	Input Voltage	Power Factor	CCT.	luminous flux	CRI	Package
MH-DN4INC-10	10W	φ140*H80	φ120	AC90-245V  50/60Hz	>0.9	2800K-3200K 4000K-4500K 6000K-6500K	800LM±100lm	Ra>80	Qty./ctn: 16pcs Inner ctn. Size: 160*160*80mm outer ctn. Size: 340*340*340mm

Lighting Distribution:


Photometric Results
Lumens(lm): 703.86
Efficiency(%): 0.00%
Lumens(lm)/Power(W): 56.76
Central intensity(cd): 254.643
Maximum intensity(cd): 260.693
Angle of maximum intensity: C=0.0 γ=5.0
Beam Angle(50%lmax): [H]Left=54.3 Right=53.7
[V]Left=58.0 Right=50.7
Field angle(10%lmax): [H]Left=78.5 Right=78.1
[V]Left=82.3 Right=74.1
Maximum s/h: C0_180=0.63 C90_270=0.62
Up flux rate of lamp(%): 0.00%
Down flux rate of lamp(%): 0.00%
Up flux rate of LUM(%): 0.96%
Down flux rate of LUM(%): 99.04%
CIE Type : Direct lighting
Output flux ratio in π solid angle : 80.294%

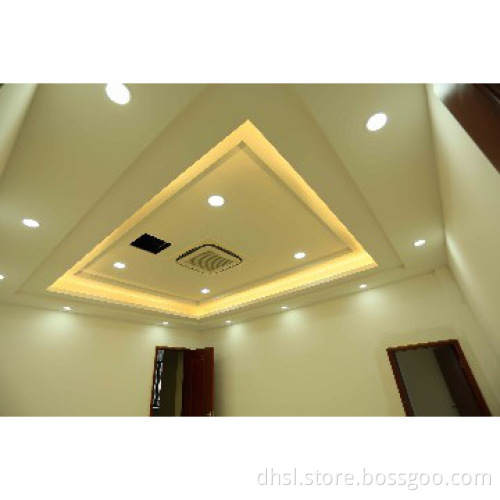

Applications:
Widely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, family, market office, night club bar, hotel disco, restaurant, coffee shop, club, showroom and ceiling light. home indoor lighting and so on.

Warnings & cautions:
● Don\'t install it around a humid environment or place which has water drops.
● Don\'t drop, scratch or squeeze the bulb.
● Don\'t take apart the product or replace mechanical and electronic components.
● Care needs to be taken that the light fixture with the bulb is a safe distance from paper, fabric or other inflammables.
● Tighten the bulb base into socket in case to prevent falling out.
● Don\'t touch the bulb body with fingers after it works for some time as the body temperature is quite warm.
● Do not stare at the strong light for a long time as it may cause injury to eyes.
