led round panel CE&RoHs approval

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Color	warm white, white, cold white
Frame material	Aluminum, PVC
Voltage	90-260V
Material	Aluminum, PVC
Application	Airport, Bedroom, Church, Cinema, Gallery, Garage, Hospital, Hotel, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED

Detail Description

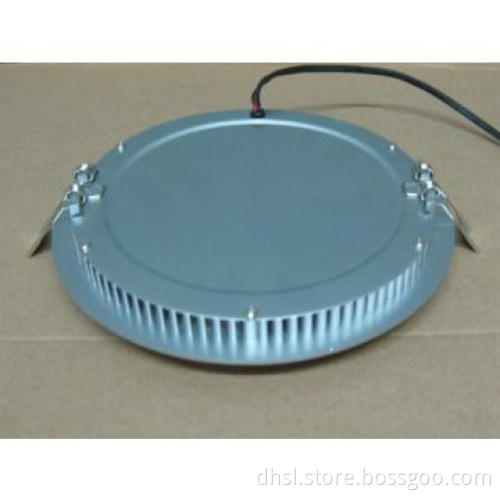

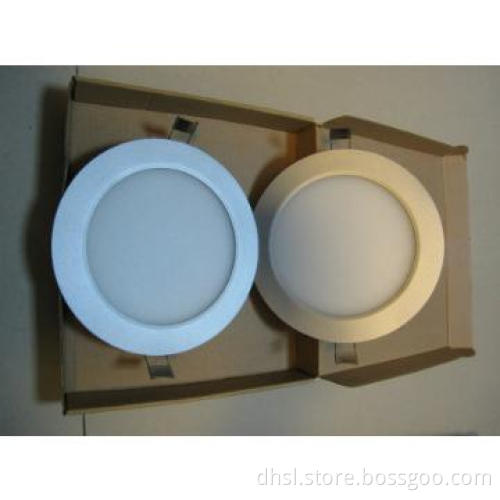

Product Description:     LED Thin Panel Down Light
LED donwlight, Led down lighting, LED down lights, LED ceiling lamps, led down lamps

           Technology specifications:
1. Input Voltage:   AC100-240V/50-60Hz
2. LED Current:     18-20mA, Constant Current Drive
3. Color:            2800-7000K, available
4. CRI :             >70
    5. Beam Angle:      120 degree
6. Surface Color:    Silver , White ,available
7. Material:         Die-Casting Aluminum + Light guide plate
8. Case Temperature:      <55 degree
9. Working Temperature:   -40~+40 ℃

Model No.	Power	Luminous Flux	Size (mm)	Size of holes (mm)	Net Weight
MH-DNPLR10W	10W	550±10% LM	Dia 180*H17	Diameter 160mm	400g
MH-DNPLS10W	10W	550±10% LM	180180H17	160*160mm	450g
MH-DNPLR13W	13W	700±10% LM	Dia 240*H17	Diameter 220mm	600g
MH-DNPLS17W	17W	1000±10% LM	180350H17	160*330mm	800g

Features:
● Can replace the conventional PLC and U type light, Spotlight
● Low heat, No UV, No IR.
● Long lifespan: 50,000 hours
● Warranty Period: 3 years
● Certification: CE , ROHS

Applications:
The Thin Panel light down lightWidely used in the hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, family, market office, night club bar, hotel disco, restaurant, coffee shop, club, showroom and ceiling light. home indoor lighting and so on.

Warnings & cautions:
● Don\'t install it around a humid environment or place which has water drops.
● Don\'t drop, scratch or squeeze the bulb.
● Don\'t take apart the product or replace mechanical and electronic components.
● Care needs to be taken that the light fixture with the bulb is a safe distance from paper, fabric or other inflammables.
● Tighten the bulb base into socket in case to prevent falling out.
● Don\'t touch the bulb body with fingers after it works for some time as the body temperature is quite warm.
● Do not stare at the strong light for a long time as it may cause injury to eyes.

Additional Information

Payment Terms	L/C, T/T, Western Union, Paypal, Others
Minimum Order	10pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	by air, sea or international express etc.
FOB Port	Shenzhen
Loading Info	by air, sea or international express etc.
Packing Info	Net weight of each piece: 400-800g
Target Market(s)	Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe
