IP65 300*1200*12mm ceiling lighting panels led lights,led panel

IP65 300120012mm ceiling lighting panels led lights,led panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

function	RF dimming mode; SCR dimming mode
Frame material	Aluminum, PVC
Color	RGB, warm white, white, cold white
installation	recessed; suspending
Application	office lighting, commercial lighting
Voltage	90-260V
Material	Aluminum, PVC
Application	Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED

Detail Description

Technical Specifications:

1. Input Voltage: AC100-240V, 50-60Hz

2. Dimemsion: 298*1198*12mm

3. Dim for installation: 300*1200 mm

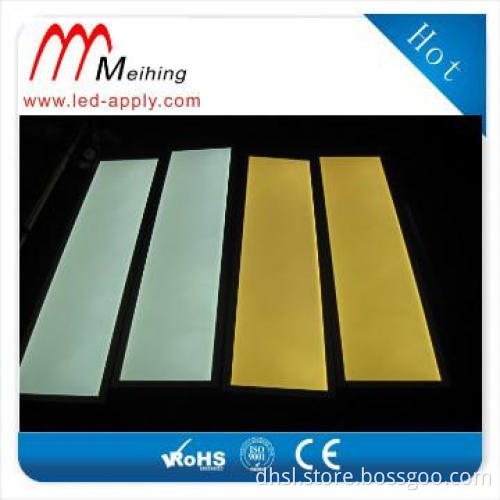

4. Color/Color Temperature: warm white(3000-3500K);white(5500-6500K); Cold White (7000K+); RGB,optional

5. Angle view: 120 degrees

6. Installation: recessed, mounted, suspended.

7. Certification: CE, RoHS.

8. Diffuse angle: 85degree.

9. Long Lifespan: 50,000 hours.
10. Quality Warranty: 3years

Model

LED&Qty.

Light Power

Total Power

Luminous

Dimming Mode

SCR

MH-PLS30120B

360pcs SMD3014

36W

42W

2800-3100LM

Available

MH-PLS30120C

720pcs SMD3014

72W

83W

5800-6400LM

Available

N/A

MH-PLS30120RGB

168pcs SMD5050

48W

N/A

Remarks：

Input Voltage: AC100-240V, with external driver.
Warm white(3000-3500K); Pure white(5500-6500K); Cold white:(7000K+).
Dimmable function optional. Customized design available.

Features:

- Frame material: AL6063 aluminium material, be oxidated, to enhance the beauty of its appearance. High efficient light guide - plate, heighten the luminous intensity.

- Instant start, no flickering, no humming

- New high efficiency constant current driver special circuit design
- No electrical wave, CE approval

- Green environmental protection, lead-free material, ROHS approval

- No RF interference

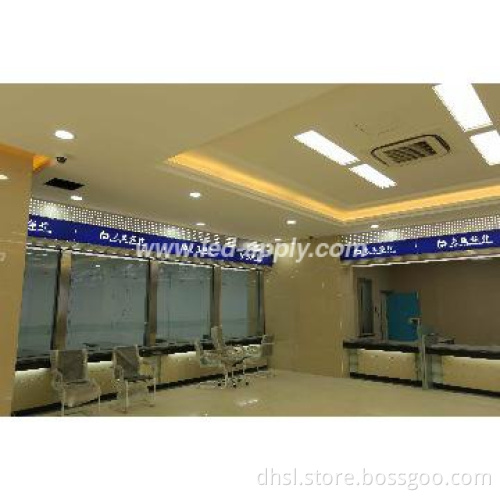

Applications:

Where need high intensity and save energy, such as Hotels ，Conference / Meeting rooms，Factories & Offices ，Commercial Purposes ，Residential / Institution Buildings，Schools, Colleges & Universities，Hospitals，Other Lighting.

Additional Information

Payment Terms	L/C, T/T, Western Union, Paypal, Others
Minimum Order	5pcs
Lead Time / Delivery Time	7 Day(s)
Sample Available	NO
Delivery Details	3-5days for samples. 10-12days for batch order.
FOB Port	Shenzhen
Loading Info	By sea, by air, or by internation express etc.
Packing Info	5pcs/inner CTN Size: 39x129x12cm10pcs /outer CTN.Size: 3912925cmG.W:45kgs/outer ctn
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
