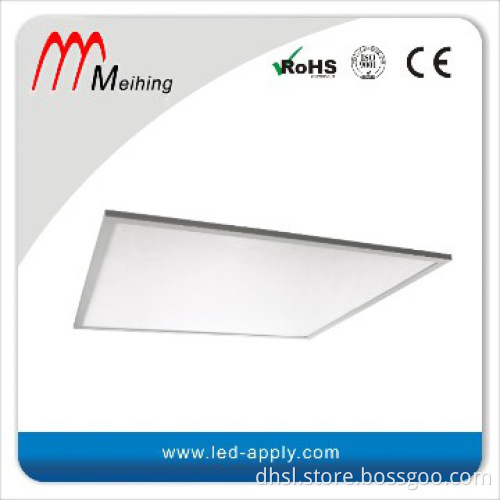

0-10V dimmable led panel lights 600*600mm 36W with Samsung SMD5630

See the differences on the detailes, then you know how we are professional and special.

Dimmable function:

This model is dimmable LED  panel light, you can adjust the brightness by controller or signal controlling system (from 0-10V) according to your requirement. More suitable for your modern lives.

Available size&Power.:

600*600mm (36W, 48W, 54W etc.); 300*300mm (18W, 36W); 300*1200mm (36W, 48W, 54W); 300*600mm (18W, 36W) etc.

Why Choose our products?

1.  Special backlite heat sink design, not edge frame heat sink. light panel body temperature less than 45degrees.

2. Unique design to meet up to 11 kinds of installation easily with matched accessories.

3. Safety string sets to ensure your installation safe, No light dropping down by accidents.

4. 12.5mm in thickness,3.5mm thicker, 30% more in weight than common panels, no deform by pressure or suspended installation.

5. Locked in connectors.

Technical Specifications:

1. Input Voltage: AC100-270V, 50-60Hz

2. Dimemsion: 595*595*12.5mm

3. Dim for installation: 600*600 mm
4. Color/Color Temperature: warm white(2800-3200K);Natural White: 4500-5500K; white(6000-6500K); Cold White (7000K+); RGB,optional

5. Angle view: 120 degrees

6. Installation: recessed, mounted, suspended.(total 11 kinds of installation for options)

7. Certification: CE, RoHS by TUV.

8. Diffuse angle: 85degree.

9. Long Lifespan: 50,000 hours.
10. Quality Warranty:5years


Applications:

Where need high intensity and save energy, such as Hotels ，Conference / Meeting rooms，Factories & Offices ，Commercial Purposes ，Residential / Institution Buildings，Schools, Colleges & Universities，Hospitals，Other Lighting.

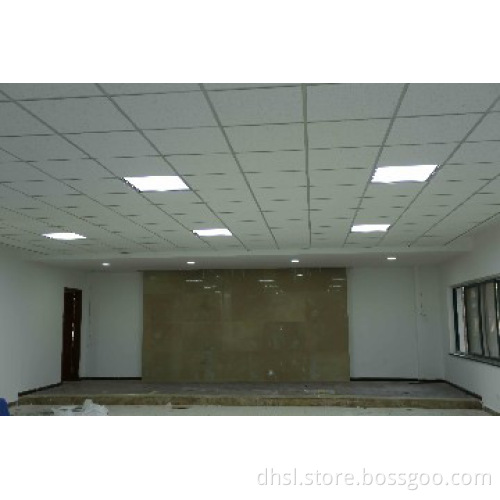

Lighting Projects:

Bank Projects

Hotel Projects

See the differences on the detailes, then you know how we are professional and special. Contact us for more!
