transparent liquid silicone gel for PCB

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

application	Potting and Encapsulant Silicone Rubber
Certificate	ISO9001,SGS,RHOS, REACH
Supply Ability	8 Ton per Day
Color	tansparent
hs code	39100000

Detail Description

transparent liquid silicone gel for PCB

Product Description

Usage of transparent liquid silicone gel for PCB High powered electronic encapsulation and DC/DC module and circuit board.

Characteristics of transparent liquid silicone gel for PCB Transparent addition potting compound is a kind of two components (1:1mixing ratio) addition cure

silicone with the Characteristics of heat-conducting, low viscosity, Inherent flame resistance,

waterproofing, etc.

It can cure both at room temperature and heated temperature and the curing time can be accelerated

by higher temperature.

Application of transparent liquid silicone gel for PCB:
• Applying for the surface of PC (Poly-carbonate), PP, ABS, PVC, Metal, etc.
• High powered electronic encapsulation and DC/DC module and circuit board which requires heat

dissipation and high temperature resistance.
• Insulation, waterproof and bonding of general electronic components.

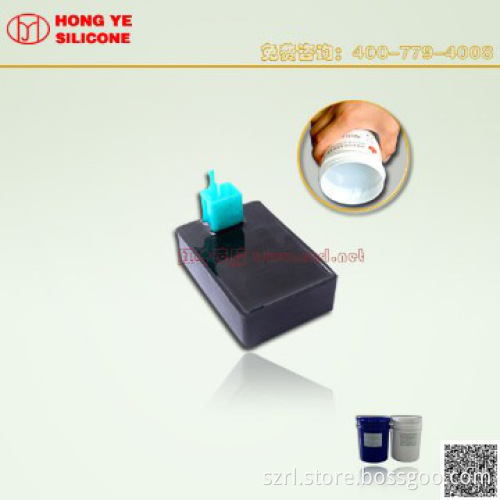

• Filling for LED, LCD electronic display, circuit board, PCB substrate, etc.
• Outdoor protection for LED screen.

Standard Datasheet of transparent liquid silicone gel for PCB:

Product Model	HY-9300
Properties index	Part A	Part B
Appearance	Transparent
Before curing	Mixed Viscosity(mPa.s)	600~1000
Features operation	Mix Ratio(A:B)	1:1
Operating Time(25°C /mins)	60~120
Curing time(hrs,25°C)	8
Curing time(hrs,80°C)	20
Hardness (shore A)	0
After Curing	Linear expansibility[m/(m·K)]	≤2.2×10-4
Thermal Conductivity[W(m·K)]	≥0.2
Dielectric Strength(kV/mm)	≥25
Dielectric permittivity(1.2MHz)	3.0~3.3
Volume resistivity(Ω·cm)	≥1.0×1016
Fire Resistance	UL94-V1

Packaging & Shipping

Packaging of transparent liquid silicone gel for PCB:
Standard packing for potting compound silicone is 22kg/set (Part A 20kg + Part B 2kg)

Our Services

Our products include 36 series in hundreds of kinds of silicone products like silicone rubber, RTV-2 molding silicone rubber, silicone rubber for manual model design, shoe sole mold silicone rubber, silicon oil, pad printing silicone rubber, encapsulant and potting compound, silicone rubber for LED display, electronic thermolysis ointment, thermal conductivity silicone, special silicone rubber for CPU, silicone tube, silicone membrane, silicone sealant, liquid silicone rubber, addition cure RTV silicone rubber, HTV silicone rubber, solid silicone rubber, gross rubber, silicone rubber sheet, hot stamping silicone plates, liquid silicone, hot stamping silicone roller, etc. Our silicone rubber is with good new raw material and various specifications, which is featured with good performance and high reputation.

Additional Information

Payment Terms	L/C, T/T, Western Union, Others
Minimum Order	200kgs
Lead Time / Delivery Time	3 Day(s)
Sample Available	YES
Delivery Details	By sea
FOB Port	Shenzhen
Loading Info	FOB, CNF or CIF
Packing Info	5kg/drum, 20kg/drum, 25 kg/drum, 200kg/drum
Target Market(s)	North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
