liquid silicone for LED , LCD potting
  • liquid silicone for LED , LCD potting
  • liquid silicone for LED , LCD potting
  • liquid silicone for LED , LCD potting
  • liquid silicone for LED , LCD potting
liquid silicone for LED , LCD potting
liquid silicone for LED , LCD potting
liquid silicone for LED , LCD potting
liquid silicone for LED , LCD potting

liquid silicone for LED , LCD potting

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
  • Product Details

Basic Specification

Liquid Electronic Potting Silicone Rubber Liquid Electronic Potting Silicone Rubber
Product Material Rubber
Shaping Mode Silicone Mould

Detail Description

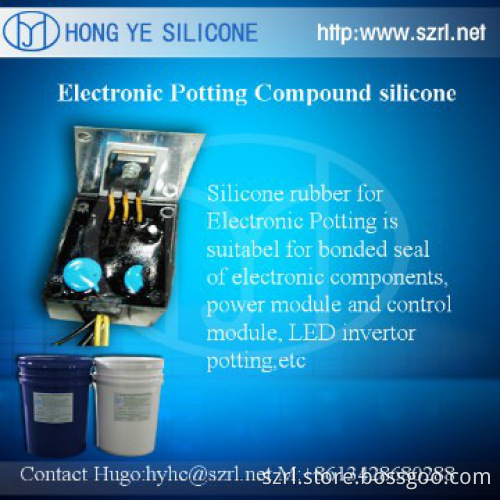

Typical Application of  liquid silicone for LED , LCD potting

9055 is suitable for bonded seal of electronic components, power module and control module, LED invertor potting, etc which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc.


Product Feature of liquid silicone for LED , LCD potting

It can be applied to the sealing and pouring of various electronic components, and then forming insulation system with no corrosion and negligible shrinkage.

Room temperature vulcanize, and easy to operate;

Maintain flexibility at a wide temperature range, and excellent insulation performance;

Waterproof, moisture-proof, mouldproof, dustproof, and stable components;

Resistance to Chemical dielectric, anti-yellowing, resistance to climate ageing.


Technical Parameters of  liquid silicone for LED , LCD potting





Before Curing

Appearence

Black Fluid

Density(25°C  g/ml)

0.98±0.02

Viscosisty(25°Ccps)

       Part A 2500±500;Part B:2500±500

Mixing Ratio

A:B=1:1(By weight)

Operating Time(25°C  min)

120

Curing time(25°C  min)

480

Curing time(80°C  min)

 20



 After Curing

Hardness(Shore  A)

50-60

Dielectric Strength(KV/mm)

23

Volume Resistance(Ω.Cm)

   1.0×10 15

Permittivity(1.2MHz)

3.0

Temperature Resistence(°C)

-60~200

Fire Resistance

  UL94-V1


Arc Resistance

250V




(Pls note: the above data for this product in 25 °C temperature, 55 percent humidity conditions, for reference. The accurate data is measured by customers to when using. The appearance can be adjusted by our technical department if required.)


Need any help on silicone rubber, please feel free to contact Hugo:

TEL:086-755-89948019

FAX:086-755-89948030

MOBILE:086-13428680288

SKYPE: hugo.chen007

Website:www(dot)szrl(dot)net

E-MAIL:hugochen014(at)gmail(dot)com




Additional Information

Payment Terms L/C, T/T, Western Union
Minimum Order 200kg
Lead Time / Delivery Time 3 Day(s)
Sample Available YES
Delivery Details within 3 days after payment confirmed in our bank.
FOB Port Shenzhen
Loading Info by sea
Packing Info 25kg/drum and 200kg/drum
Target Market(s) North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
