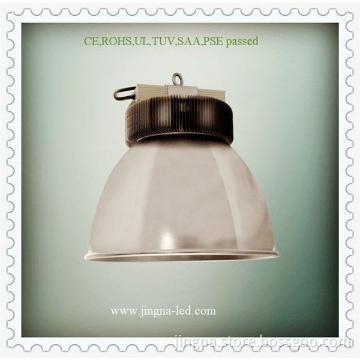

80W - 260W Factory Induction HighBay Light / Induction lamp

80W - 260W Factory Induction HighBay Light / Induction lamp




Features & Advantages of 160W LED high bay light:
•Anodized aluminum tensile reflector.
•Patented heat body design.
•High efficiency LED driver.
•Energy-saving, environmental-friendly and long lifespan
•Convenient for installation, almost free-maintenance

Packing information of 160W LED high bay light:

- Quantity per carton: 2pcs

- Gross weight per carton box: 13kg

Service Terms:

1. Payment Term: T/T, Paypal, Western Union, optional.

2. Price terms: EXW Shenzhen

3. Shipping Port: Shenzhen;

4. Delivery Way: DHL / UPS / Fedex / TNT / Air / Sea;

5. MOQ: 1 PC

6. Warranty: 3 years

7. Certification: UL/CUL, CE/RoHS

Installation instructions of 160W LED high bay light:

1. Check the box to see if there is damage or not on the packings and lamps.
2. Loose the Pre-installed screw of lamp body radiator (figure 1)
3. Take out a qualified chimney from the chimney of packing.
4. Then aiming the chimney hole slde and the radiator hole side and twist in screw an last.
5. Get the lamps hanging in a fixed hanger directly on the ceiling or beams of the hook.
6. The hanger must withstand minimum 8.5KG.Through the electrical box hook the steel chain auxiliary fixed. (figure 2, 3&4)
7. Wire the black line to Live wire, white one to Null line, yellow-green one to EEarth inside outlet box(figure 5).
8. Secured the canopy to the outlet box by two screws.
9. Caulk all sides of canopy by silicone gel. After all the installation finished and fine, power on the lamp.
