EMC 3030 SMD power LED Diode cool white
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Yellow phosphor | emitting white |
|---|---|
| Color | Warm White |
| Rated Voltage | 3.6V |
Detail Description

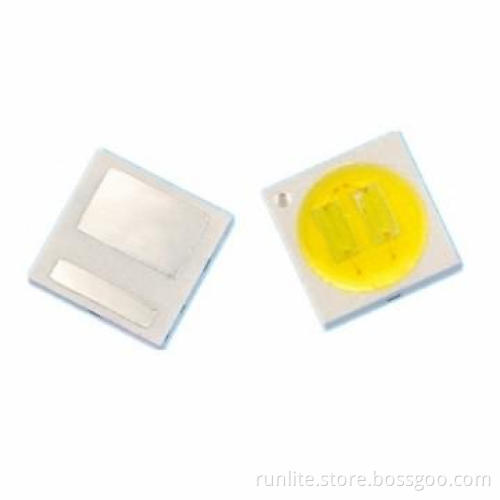

EMC 3030 1W power SMD LED Diode
1. Substrate material: EMC-Epoxy Molding Compound
2. Hight Heat-resistance
3. High UV-resistance
4. High light efficiency
5. Rated current&voltage: 150mA&6.2V
6. Less heat generation and long lifetime----LM-80 certified
7. Lifetime: 50,000 hours
8. For spot light,down light,wall washer,back light and so on
1. Substrate material: EMC-Epoxy Molding Compound
2. Hight Heat-resistance
3. High UV-resistance
4. High light efficiency
5. Rated current&voltage: 150mA&6.2V
6. Less heat generation and long lifetime----LM-80 certified
7. Lifetime: 50,000 hours
8. For spot light,down light,wall washer,back light and so on
| Part Number | Luminous Flux(lm) | Efficiency(lm/w) | CRI(Ra) | Color | CCT (Kelvin) | Bin Code | Forward Current(mA) | Forward Voltage(V) |
| EMC3030-TZ-A (2 chips) Series | 100-110lm | 105-120 | 70-75 | Warm-White | 2870-3220 | 58G/62G | 150mA | 5.6-7.2v |
| 110-120lm | 120-130 | 70-75 | Neutral-White | 3985-4503 | 41G/44G | 150mA | 5.6-7.2v | |
| 110-120lm | 120-130 | 70-75 | Cool-White | 5665-6530 | 29G/31G | 150mA | 5.6-7.2v | |
| EMC3030-TZ-B (2 chips) Series | 90-100lm | 95-105 | 80-85 | Warm-White | 2870-3220 | 58G/62G | 150mA | 5.6-7.2v |
| 100-110lm | 105-120 | 80-85 | Neutral-White | 3985-4503 | 41G/44G | 150mA | 5.6-7.2v | |
| 100-110lm | 105-120 | 80-85 | Cool-White | 5665-6530 | 29G/31G | 150mA | 5.6-7.2v |
Additional Information
| Payment Terms | T/T, Western Union, Paypal |
|---|---|
| Minimum Order | 2000pcs |
| Lead Time / Delivery Time | 8 Day(s) |
| Sample Available | YES |
| Delivery Details | Good after-sale servicePayment term: T/T, Western Union or Paypay before shipmentShipping method: EXPRESS, Airfreight, or sea shipping |
| FOB Port | Hong Kong,Shenzhen |
| Loading Info | FOB: Hongkong or SZ |
| Packing Info | 4000pcs/reel76,000pcs/ carton in size: 315*220*240mmCarton material: Hard board |
| Target Market(s) | Africa(except Middle East), Central & Southern Asia, Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Southeast Asia, Western & Southern Europe |
