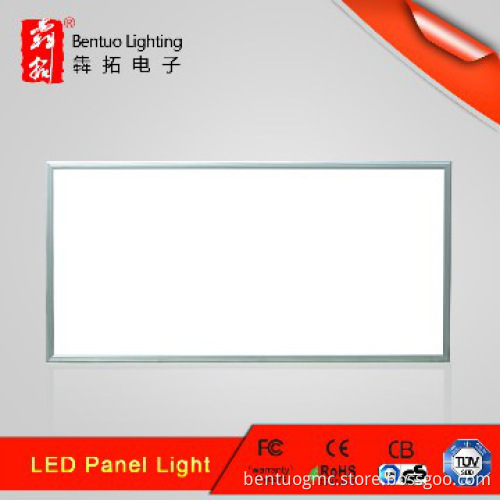

1200*600 panel light with RoHs certificate

1200*600 panel light with RoHs certificate

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Luminous efficiency	80±5LM/w
CRI	>80
Power	72w
LED chip	Samsung Seoul. aiwan wafer
Certifications	TUV CE GS CB EMC RHOS FCC TCT ERP
Voltage	110-220V
Material	Acrylic, Aluminum, PMMA, Plastic
Application	Airport, Bathroom, Bedroom, Car Park, Church, Cinema, Gallery, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED

Detail Description

Name	LED Panel Light
Lighting Source	SMD5630
LED Chip Brand	Samsung/Seoul/Epistar
LED Quantity	240pcs
Driver	UL External Constant-Current Driver
Power Consumption	72W
Input Voltage	AC100-277V
Working Voltage	30-42V
Constant Current	840mA/1100mA/1300mA/1680mA
LED Luminous Efficiency	80-85lm/w
Power Factory	>0.95
LED Life Expectancy	50000hours
Beam Angle	120
Luminous Flux	5000-5400lm
Color Temperature	WW/NW/CW
Protection Grade(IP)	IP20
Color Rendering Index(Ra)	>80
Temperature Rising	Passed according to En60598
Fixture Material	Junction Box Hanglig Cable Screws
Cover Brand	Al R9016
Housing Cover	Silver/White
Dimension/Size	1195x595x11mm
Net Weight	7kg
Relative Humidity	Passed according to En60598
Operation Temperature	-10--40
Shock Test	0.35-0.5Nm
Insulation Class	Class2
Certification	TUV(CB/GS) CE FCC PSE RoHS ISO9001:2008
Warrranty	3-5years

1, Frame: Superior Aluminum, well heat dissipation.

2, Diffusion Plate: PC/PMMA/PS/PP material are options, thickness 1.5mm/2mm.

3, Light Guide Plate: Using Mitsubishi LGP, thickness 3mm/4mm.

4, Reflector Sheet: Laser Dotting or Ink Printing.

5, Dissipation Square: Dissipation Square larger than other company as back plate dissipation.

6, Certification: TUV(CB/GS)/CE/FCC/PSE/RoHS/ ISO9001:2008.

7, Using SMD5630 as light source to make sure high luminous flux and conformity light output.

8, No mercury or no radiation, match green and environmental.

9, Side emitting, diffused reflection, no glaring, the light is soft and comfortable.

10, Elegant design by smooth Aluminum frame and PS cover.

11, Suspending by links and wall mounted are available.

12, Stable and durable, 50000hours lifespan, extremely light decay.

13, Bright, spread uniformly, broad angle.

Additional Information

Payment Terms	T/T, Others
Minimum Order	50
Lead Time / Delivery Time	7 Day(s)
Sample Available	YES
Delivery Details	Sample orders:3-5daysBulk order(1000pcs or above):10-15days.
FOB Port	Yantian
Loading Info	shipping transportation.
Packing Info	EPE liner, carton cartoon.
Target Market(s)	North America, Eastern Europe, Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Northern Europe
