shopping mall energy saving super brightness LED Panel lights 1ftx1ft

shopping mall energy saving super brightness LED Panel lights 1ftx1ft

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Details

Basic Specification

Power factor	>0.95
Flux	2000-2400Lumens
Light efficiency	85lm/w
LED chip	Samsung
Power	36W
Voltage	110-220V
Material	ABS, Acrylic, Aluminum, Aluminum Die Casting, Ceramics, Chrome, Cold Rolled Steel, Copper, Crystal, Fabric, Glass, Iron, Leather, Magnesium, PC, PMMA, PVC, Paper, Plastic, Silicone, Stainless Steel, Steel, Stone, Wooden
Application	Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Light Source	LED

Detail Description

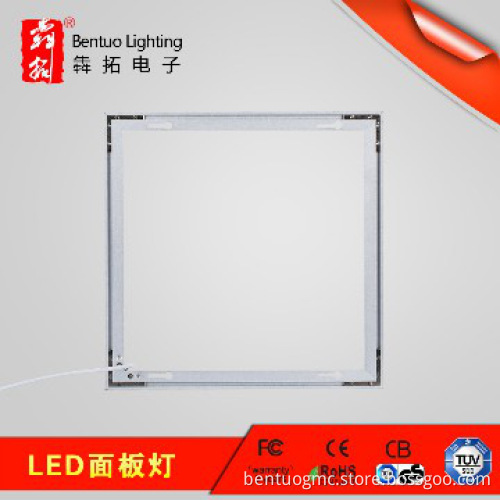

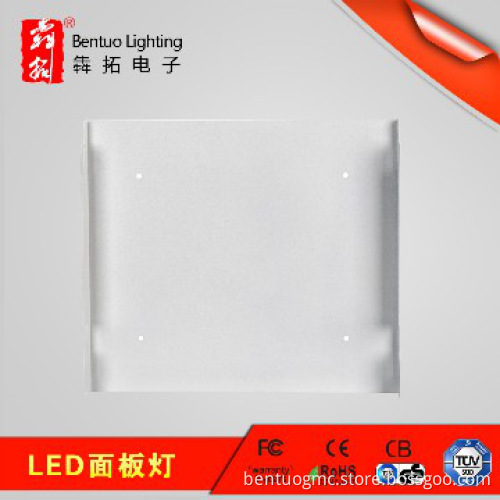

Factory 1x1ft 300x300mm Panel LED Panel Light with CE ROHS FCC TUV

Name	LED Panel Light
Lighting Source	SMD5630
LED Chip Brand	Samsung/Seoul/Epistar
LED Quantity	120pcs

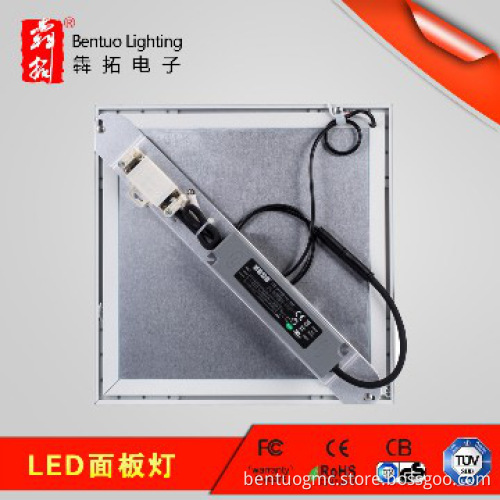

Driver	UL External Constant-Current Driver
Power Consumption	36w
Input Voltage	AC100-277V
Working Voltage	30-42V
Constant Current	1300mA
LED Luminous Efficiency	80-85lm/w
Power Factory	>0.95
LED Life Expectancy	50000hours
Beam Angle	120
Luminous Flux	2400lm ±200lm
Color Temperature	WW/NW/CW
Protection Grade(IP)	IP20
Color Rendering Index(Ra)	>80
Temperature Rising	Passed according to En60598
Fixture Material	Junction Box Hanglig Cable Screws
Cover Brand	Al R9016
Housing Cover	Silver/White
Dimension/Size	296x296x12.5mm
Net Weight	1.3KG
Relative Humidity	Passed according to En60598
Operation Temperature	-10--40
Shock Test	0.35-0.5Nm
Insulation Class	Class2
Certification	TUV(CB/GS) CE FCC PSE RoHS ISO9001:2008
Warrranty	3-5years

1, Frame: Superior Aluminum,seamless, well heat dissipation.

2, Diffusion Plate: PC/PMMA/PS/PP material are options, thickness 1.5mm/2mm.

3, Light Guide Plate: Using Mitsubishi LGP, thickness 3mm/4mm.

4, Reflector Sheet: Laser Dotting or Ink Printing.

5, Dissipation Square: Dissipation Square larger than other company as back plate dissipation.

6, Certification: TUV(CB/GS)/CE/FCC/PSE/RoHS/ ISO9001:2008.

7, Using SMD5630 as light source to make sure high luminous flux and conformity light output.

8, No mercury or no radiation, match green and environmental.

9, Side emitting, diffused reflection, no glaring, the light is soft and comfortable.

10, Elegant design by smooth Aluminum frame and PS cover.

11, Suspending by links and wall mounted are available.

12, Stable and durable, 50000hours lifespan, extremely light decay.

13, Bright, spread uniformly, broad angle.

We can provide full set installation accessories and 3 main install methods,

1, Surface Mounted installation
2, Recessed installation
3, Suspended installation

Our core Strength and service

1, Sixteen years\' experience of electronic manufacturing
2，Our company is large-scale and full-equipped.
3，High output, fast delivery!
we have lots of LED panel lights, LED strips on stock, in this case, we can even deliver within a day.
4，Reliable quality assurance!
our policy is \"details determine everything, and quality determines our future.\"
5，Long-term cooperation with famous companies in China

Our company have obtained ISO 9001:2008 and GMC approvals.
Most of our products have been CE, RoHS, FCC, PSE certificated.
CE, FCC, RoHS approvals for LED panel lights.
CE,FCC, RoHS approvals for LED strips lights.
CE, FCC, RoHS approvals for LED tube lights

Our Partners

Our product categories,

LED Panel Lights
LED Strip Lights
LED Strips set

\"Details determine quality, quality wins the reputation and reputation builds the brand\". Welcome to contact us if there is anything we can do for you !

Additional Information

Payment Terms	L/C, T/T
Minimum Order	50
Lead Time / Delivery Time	5 Day(s)
Sample Available	YES
Delivery Details	Sample orders:3-5daysBulk order(1000pcs or above):10-15days
FOB Port	Yantian
Loading Info	shipping transportation, or as our customers\' requirements.
Packing Info	EPE liner, gift box, carton cartoon.
Target Market(s)	North America, Oceania, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East
